BRIMGARDä CONTINUOUS GROMMETS


 BRIMGARDä CONTINUOUS GROMMETS

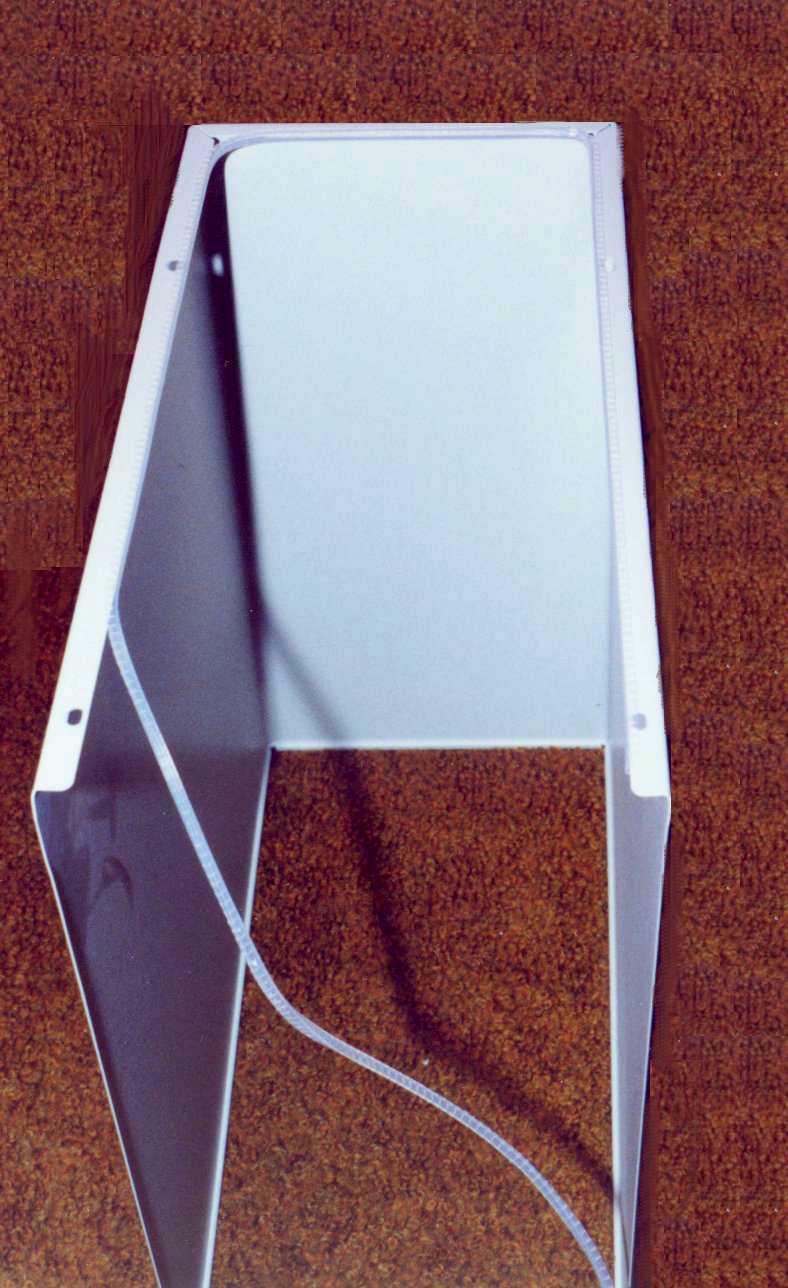

Brimguardä protects regular and irregular shaped edges and openings, or prevent damage to wires,
cables, tubings, hoses, etc. placed through sharp edged panels, or openings.   Smooth out rough
edges.  Make them safe, fray-free.  "Finish-off" enclosures or other products.  Being continuous, you
can cut the grommet to the exact size/length you want, then place over the panel edge to be covered.
It fits snugly, and securely.  It wont jar loose.  Eliminate the need to buy & stock a variety of grommets.
Material:  Polyethylene (for general all-purpose uses) and Nylon (for severe conditions).
Color: Natural+                                                                                       Std. Pkg.: 100,1000
                                                POLYETHYLENE

Brimgardä No.
Solid

Serrated
   A    B         C
BPG-1 BPGS-1 .125" .031" .026"--.036"
BPG-2 BPGS-2 .172" .031" .037"--.071"
BPG-2.5 BPGS-2.5 .172" .031" .072"--.105"
BPG-3 BPGS-3 .188" .047" .106"--.164"
BPG-4 BPGS-4 .188" .047" .165"--.187"
BPG-5 BPGS-5 .188 .047" .188"--.250"


 NYLON*

Brimgardä No.
Solid

Serrated
   A    B         C
BNG-1 BNGS-1 .125" .031" .026"--.036"
BNG-2 BNGS-2 .172" .031" .037"--.071"
BNG-2.5 BNGS-2.5 .172" .031" .072"--.105"
BNG-3 BNGS-3 .188" .047" .106"--.164"
BNG-4 BNGS-4 .188" .047" .165"--.187"
BNG-5 BNGS-5 .188" .047" .188"--.250"

* Conforms to MIL-M-22096 Type 4. RoHS compliant.
+ Black is available to order.  To order add "B" to the end of the part number.




BRIM ELECTRONICS, INC.    120 HOME PLACE          LODI, NJ 07644
TEL: 201-796-2886   FAX: 973-778-2792   E-MAIL:info@brimelectronics.com
