BRIMFLEXä FIBERGLASS SLEEVINGS:
    UNCOVERED--VINYL & SILICONE COVERED

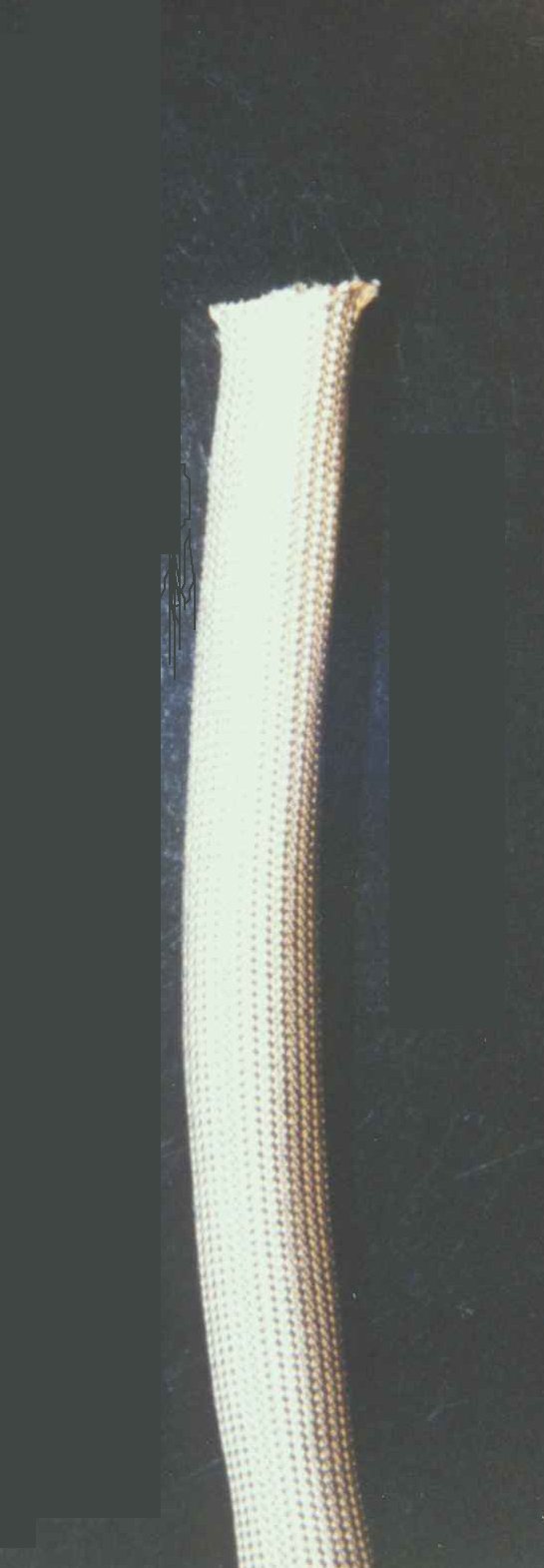

BRIMFLEXä BFG FIBERGLASS SLEEVING— 1200°F


BRIMFLEX
ä BFG fiberglass sleeving is a commercial tightly braided heat treated fiberglass sleeving
that is very flexible, and used for high temperature applications--up to 1200
°F.  BFG fiberglass is non-
flamable and treated to remove all organic matter.  BFG conforms to NEMA Spec. VSI, Class H (240
°C)
Dielectric Strength is determined by space factor.  Low-fraying.  Std. Color: Natural/White.
OPER.TEMP.: 1200
°F.




Brimlflexä
No.
Size Nom.
 I.D.
Nom.
Wall
 Std. P-U Brimlflexä
No.
 Size   Nom.
   I.D.
Nom.
Wall
 Std. P-U
BFG-24   24 .022" .010" 100',1000' BFG-6     6   .166" .015" 100',250'
BFG-22   22 .027" .010" 100',1000' BFG-5     5   .186" .015" 100',250'
BFG-20   20 .034" .010" 100',1000' BFG-4     4   .208" .015" 100',250'
BFG-18   18 .042" .010" 100',1000' BFG-3     3   .234" .015" 100',250'
BFG-17   17 .047" .010" 100',1000' BFG-2     2   .263" .015" 100',250'
BFG-16   16 .053" .010"   100',500' BFG-1     1   .294" .015" 100',250'
BFG-15   15 .059" .010"   100',500' BFG-0     0   .330" .015" 100',250'
BFG-14   14 .066" .013"   100',500' BFG-3/8"   3/8"   .387" .020"   50',100'
BFG-13   13 .076" .013"   100',500' BFG-7/16" 7/16"   .450" .020"   50',100'
BFG-12   12 .085" .013"   100',500' BFG-1/2"   1/2"   .512" .020"   50',100'
BFG-11   11 .095" .013"   100',500' BFG-5/8"   5/8"   .640" .020"   50',100'
BFG-10   10 .106" .013"   100',500' BFG-3/4"   3/4"   .768" .020"   50',100'
BFG-9    9 .118" .013"   100',250' BFG-7/8"   7/8"   .893" .020"   50',100'
BFG-8    8 .133" .013   100',250' BFG-1"    1" 1.018" .020"   50',100'
BFG-7    7 .148" .015   100',250'

UL RECOGNIZED FIBERGLASS SLEEVING (.031" WALL) IS AVAILABLE TO ORDER.
SATURATED/DYED FIBERGLASS SLEEVINGS FOR REDUCED FRAYING IS AVAILABLE TO ORDER.


BRIMFLEXä B130 VINYL COVERED FIBERGLASS SLEEVING—
MIL-I-3190/2 GRADE B-B-1  UL CLASS 130°C

BRIMFLEX
ä B130 is a Vinyl covered fiberglass sleeving recommended for temperature applica-
tions of up to +130
°C.  B130 is a high temperature PVC extrusion over a heat treated inorganic
fiberglass braiding.  It is very flexible.  The fiberglass is non-flammable, & the outer PVC jacket
is treated to make it heat resistant per UL FR-1.  Neither will support combustion.  NEMA VSI
ASTM-D-372.  Color stability retained even after prolonged baking at elevated temperatures.
Dielectric Strength: 4000V Avg.  Meets MIL-I-3190/2 Class 130 Grade B-B-1, and UL recognized Class
130
°C.  STD. COLORS: Black, Yellow.   Other colors available to order.    OPER. TEMP.: -20°C to +130°C.



Brimlflexä
No.
Size Nom.
 I.D.
Nom.
Wall
  Std. P-U Brimlflexä
No.
 Size  Nom.
   I.D.
Nom.
Wall
 Std. P-U
B130-24  24 .022" .015" 100',1000' B130-6     6   .166" .020" 100',250'
B130-22  22 .027" .015" 100',1000' B130-5     5   .186" .025" 100',250'
B130-20  20 .034" .015" 100',1000' B130-4     4   .208" .025" 100',250'
B130-18  18 .042" .015" 100',1000' B130-3     3   .234" .025" 100',250'
B130-17  17 .047" .015" 100',1000' B130-2     2   .263" .025" 100',250'
B130-16  16 .053" .015" 100',1000' B130-1     1   .294" .025"   50',100'
B130-15  15 .059" .015"   100',500' B130-0     0   .330" .025"   50',100'
B130-14  14 .066" .015"   100',500' B130-3/8"  3/8"   .375" .030"   50',100'
B130-13  13 .076" .015"   100',500' B130-7/16" 7/16"   .438" .030"   50',100'
B130-12  12 .085" .020"   100',500' B130-1/2"  1/2"   .500" .030"   50',100'
B130-11  11 .095" .020"   100',500' B130-5/8"  5/8"   .625" .030"   50',100'
B130-10  10 .106" .020"   100',500' B130-3/4"  3/4"   .750" .030"   50',100'
B130-9   9 .118" .020"   100',500' B130-7/8"  7/8"   .875" .030"   50',100'
B130-8   8 .133" .020'   100',500' B130-1"    1" 1.000" .030"   50',100'
B130-7   7 .148" .020"   100',500'


BRIMFLEXä B200 SILICONE RUBBER COVERED FIBERGLASS SLEEVING
MIL-I-3190/6 & UL CLASS H 200
°C  UL VW-1

BRIMFLEX
ä B200 Silicone Rubber covered fiberglass sleeving is an excellent inorganic high & low
temperature insulating material.  B200 provides greater mechanical strength because it is more con-
centric, homogenous and denser than conventional dip coated Silicone Rubber Fiberglass sleeving.
The Silicone Rubber used for our B200 series is bonded to the supporting fiberglass braid so it won't
push back or peel.  It is suitable for insulation of leads and connections of electrical and electronic
components in applications requiring high and low temperature flexibility.  It is resistant to moisture,
corona, ozone, radiation, compression set, fungus, most chemicals and solvents, weathering, flexure
fatigue and heat degradation.  Self-extinguishing (upon removal of flame per UL VW-1).  The coating
maintains it's electrical integrity, even under severe fire conditions, by forming a non-conductive ash.
Conforms to
MIL-I-3190/6 Type D Cat. C, Grade A (8000V average Dielectric Strength), & UL recognized Class H
200°C (available to order).  OPER. TEMP.: -70°C to +200°C.   Std. Color: White.   Other colors available to order.
UL recognized Class 200°C.



Brimlflexä
No.
Size Nom.
 I.D.
Nom.
Wall
 Std.
 P-U
Brimlflexä
No.
  Size  Nom.
   I.D.
Nom.
Wall
Std.
P-U
B200-24   24 .022" .030" 1000' B200-7      7   .148" .045" 250'
B200-22   22 .027" .030" 1000' B200-6      6   .166" .045" 250'
B200-20   20 .034" .030" 1000' B200-5      5   .186" .045" 250'
B200-19   19 .038" .030" 1000' B200-4      4   .208" .045" 250'
B200-18   18 .042" .030" 1000' B200-3      3   .234" .045" 250'
B200-17   17 .047" .030" 1000' B200-2      2   .263" .055" 250'
B200-16   16 .053" .030" 1000' B200-1      1   .294" .055" 250'
B200-15   15 .059" .030" 1000' B200-0      0   .330" .055" 200'
B200-14   14 .066" .045"   500' B200-3/8"   3/8"   .387" .055" 200'
B200-13   13 .076" .045"   500' B200-7/16"  7/16"   .450" .065" 200'
B200-12   12 .085" .045"   500' B200-1/2"   1/2"   .512" .065" 100'
B200-11   11 .095" .045"   500' B200-5/8"   5/8"   .640" .065" 100'
B200-10   10 .106" .045"   500' B200-3/4"   3/4"   .768" .075" 100'
B200-9    9 .118" .045"   500' B200-7/8"   7/8"   .893" .075" 100'
B200-8    8 .133" .045"   500' B200-1"     1" 1.018" .075" 100'


ACRYLIC COVERED FIBERGLASS SLEEVING PER MIL-I-3190/3 CLASS 155°C IS AVAILABLE TO ORDER.



BRIM ELECTRONICS, INC. 120 HOME PLACE    LODI, NJ 07644
TEL: 201-796-2886     FAX: 973-778-2792     E-MAIL: info@brimelectronics.com
