BRIM
INSTRUMENTATION CABLES
MINIATURE
SHIELDED
CONTROL AND INSTRUMENTATION CABLES
MIL-W-16878D
TYPE B -- 600V
+105°C

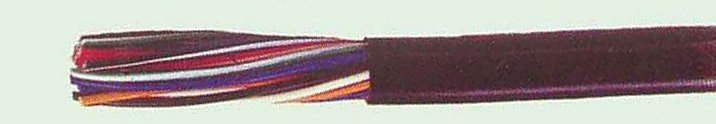

DESCRIPTION:
Stranded tinned copper conductors,
Type B 105°C
.010" wall PVC, cabled, mylar
binder,
braided tinned copper shield, 90% min.
coverage, 105°C
Gray PVC jacket overall.
All material pass UL
VW-1 test. PVC
is resistant to acid,
fungus, oils, moisture, solvents,
flame. Used as an
interconnecting
cable for electronic equipment, control
& instrumentation
cable telemetry
and remote control cable for
sensItive recording instruments. OPER.
VOLT.: 600 Volts. OPER.
TEMP.: -55°C to +105°C.
RoHS compliant constructions are available
to
order. STD.
P-U: 500', 1000'
|
Brim |
No. |
AWG |
|
Nom. |
Nom. |
Nom. |
|
Brim |
No. |
AWG |
|
Nom. |
Nom. |
Nom. |
|
1202/2 |
2 |
B-28 |
7/36 |
.010" |
.010" |
.115" |
|
1202/12 |
12 |
B-28 |
7/36 |
.010" |
.018" |
.215" |
|
1202/3 |
3 |
B-28 |
7/36 |
.010" |
.012" |
.125" |
|
1202/15 |
15 |
B-28 |
7/36 |
.010" |
.020" |
.230" |
|
1202/4 |
4 |
B-28 |
7/36 |
.010" |
.012" |
.132" |
|
1202/20 |
20 |
B-28 |
7/36 |
.010" |
.022" |
.245" |
|
1202/6 |
6 |
B-28 |
7/36 |
.010" |
.015" |
.160" |
|
1202/25 |
25 |
B-28 |
7/36 |
.010" |
.025" |
.270" |
|
1202/8 |
8 |
B-28 |
7/36 |
.010" |
.015" |
.175" |
|
1202/30 |
30 |
B-28 |
7/36 |
.010" |
.028" |
.301" |
|
1202/10 |
10 |
B-28 |
7/36 |
.010" |
.018" |
.200" |
|
|
|
|
|
|
|
|
COLOR CODE:
1-White,2-Black,3-Red,4-Green,5-Orange,6-Lt.Blue,7-Wh/Black,8-Red/Black,9-Green/Blk,
10-Orange/Blk,11-Blue/Blk,12-Black/Wh,13-Red/Wh,14-Green/Wh,15-Blue/Wh,16-Black/Red,17-White/Red,
18-Orange/Red,19-Blue/Red,20-Red/Green,21-Org./Green,22-Blk/Wh/Red,23-Wh/Blk/Red,24-Red/Blk/Wh,
25-Green/Black/White, 26-Orange/Black/White,
27-Blue/Black/White,28-Black/Red/Green,
29-White/Red/Green,
30-Red/Black/Green
BRIM
MINIFLYXä
SUBMINIATURE ULTRA-FLEXIBLE
INSTRUMENTATION
CABLES
DESCRIPTION: Ultra-flexible
stranded bare copper conductors, .005" wall of
soft flexible PVC, braided
shield, White .010" soft
flexible PVC jacket overall. Suitable
as an instrumentation cable where ultra-
flexibility and subiniaturization
are essential, in low voltage
applications. For example:
biomedical
instruments, missiles, computer,
miniature relays, disc drives, servo
systems, recorders.
OPER. TEMP.: -40°C to +90°C. COLOR CODE:
1-White, 2-Black, 3-Red, 4-Green,
5-Yellow.
OPER. VOLT.: 200 Volts. RoHS
compliant constructions
are available to order. STD.
P-U: 1000ft.
|
BRIM |
No.
|
AWG |
|
Nom. |
Nom. |
Nom. |
|
BRIM |
No.
|
AWG |
|
Nom. |
Nom. |
Nom. |
|
1210/2 |
2 |
30 |
40/46 |
.005" |
.010" |
.073" |
|
1213/2 |
2 |
36 |
25/50 |
.005" |
.010" |
.061" |
|
1210/3 |
3 |
30 |
40/46 |
.005" |
.010" |
.076" |
|
1213/3 |
3 |
36 |
25/50 |
.005" |
.010" |
.063" |
|
1210/4 |
4 |
30 |
40/46 |
.005" |
.010" |
.082" |
|
1213/4 |
4 |
36 |
25/50 |
.005" |
.010" |
.067" |
|
1210/5 |
5 |
30 |
40/46 |
.005" |
.010" |
.088" |
|
1213/5 |
5 |
36 |
25/50 |
.005" |
.010" |
.072" |
|
1211/2 |
2 |
32 |
65/50 |
.005" |
.010" |
.069" |
|
1214/2 |
2 |
36 |
25/50 |
.005" |
.010" |
.057" |
|
1211/3 |
3 |
32 |
65/50 |
.005" |
.010" |
.072" |
|
1214/3 |
3 |
36 |
25/50 |
.005" |
.010" |
.060" |
|
1211/4 |
4 |
32 |
65/50 |
.005" |
.010" |
.077" |
|
1214/4 |
4 |
38 |
16/50 |
.005" |
.010" |
.064" |
|
1211/5 |
5 |
32 |
65/50 |
.005" |
.010" |
.083" |
|
1214/5 |
5 |
38 |
16/50 |
.005" |
.010" |
.068" |
|
1212/2 |
2 |
34 |
40/50 |
.005" |
.010" |
.065" |
|
1214/4 |
2 |
40 |
10/50 |
.005" |
.010" |
.056" |
|
1212/3 |
3 |
34 |
40/50 |
.005" |
.010" |
.068" |
|
1214/5 |
3 |
40 |
10/50 |
.005" |
.010" |
.059" |
|
1212/4 |
4 |
34 |
40/50 |
.005" |
.010" |
.072" |
|
1212/3 |
4 |
40 |
10/50 |
.005" |
.010" |
.063" |
|
1212/5 |
5 |
34 |
40/50 |
.005" |
.010" |
.078" |
|
1212/3 |
5 |
40 |
10/50 |
.005" |
.010" |
.067" |
OTHER COLOR CODES
& UNSHIELDED
CONSTRUCTIONS ARE AVAILABLE TO ORDER.
RoHS
COMPLIANT RESINS ARE AVAILABLE TO ORDER.
BRIM
MINIFLYXä
ULTRA-FLEXIBLE
(NEW)
SHIELDED
INSTRUMENTATION
CABLE
DESCRIPTION: Ultra-flexible
stranded bare copper conductors,
.007" or .008" wall of soft
flexible
PVC, braided AWG
tinned
copper shield, White,
.012" soft flexible +90°C PVC jacket overall.
Suitable as an instrumentation cable where
ultra-flexibility and
miniaturization are essential, in low
voltage applications. For example:
Biomedical
instruments, missiles, servo-systems,
and recorders.
OPER.VOLTAGE:
300 Volts
OPER.
TEMP.
: -40°C to +90°C
COLOR CODE: 1-WHITE, 2-BLACK, 3-RED, 4-GREEN,
5-YELLOW
STD.
P-U:
1000'
|
BRIM |
No. |
AWG |
|
Nom. |
Nom. |
Nom. |
|
BRIM |
No. |
AWG |
|
Nom. |
Nom. |
Nom. |
|
1208/2 |
2 |
26 |
105/46 |
.008" |
.012" |
.103" |
|
1209/2 |
2 |
28 |
65/46 |
.007" |
.012" |
.089" |
|
1208/3 |
3 |
26 |
105/46 |
.008" |
.012" |
.109" |
|
1209/3 |
3 |
28 |
65/46 |
.007" |
.012" |
.095" |
|
1208/4 |
4 |
26 |
105/46 |
.008" |
.012" |
.118" |
|
1209/4 |
4 |
28 |
65/46 |
.007" |
.012" |
.100" |
|
1208/5 |
5 |
26 |
105/46 |
.008" |
.012" |
.128" |
|
1209/5 |
5 |
28 |
65/46 |
.007" |
.012" |
.108" |
OTHER COLOR CODES
& UNSHIELDED
CONSTRUCTIONS ARE AVAILABLE TO ORDER.
RoHS
COMPLIANT RESINS ARE AVAILABLE TO ORDER.
MIL-W-16878D
TYPE
BN SHIELDED INSTRUMENTATION CABLES -- 600V
DESCRIPTION: One
to four conductors, stranded tinned copper of
Type BN
insulation
-- .010"
wall PVC, clear nylon jacket
--conductors are cabled, braided tinned
copper shield, white PVC
jacket overall. Cable
components meet UL VW-1
vertical flame test requirements, and is
resistant to oils, acids solvents, alkalis,
moisture fungus. OPER.
VOLT.: 600V.
COLOR CODE: 1-White, 2-Black, 3-Red, 4-Green.
OPER.
TEMP.: -55°C
to +105°C.
STD. P-U: 500',
1000'.
|
BRIM |
No.
|
AWG- |
PVC
|
Nylon |
Nom. |
Nom. |
|
BRIM |
No.
|
AWG- |
PVC
|
Nylon |
Nom. |
Nom. |
|
1450 |
1 |
26-7/34 |
.010" |
.003" |
.010" |
.087" |
|
1453/2 |
2 |
20-19/32 |
.010" |
.003" |
.019" |
.190" |
|
1450/2 |
2 |
26-7/34 |
.010" |
.003" |
.014" |
.138" |
|
1453/3 |
3 |
20-19/32 |
.010" |
.003" |
.019" |
.200" |
|
1450/3 |
3 |
26-7/34 |
.010" |
.003" |
.014" |
.142" |
|
1453/4 |
4 |
20-19/32 |
.010" |
.003" |
.021" |
.216" |
|
1450/4 |
4 |
26-7/34 |
.010" |
.003" |
.016" |
.162" |
|
1454 |
1 |
18-19/30 |
.010" |
.003" |
.012" |
.122" |
|
1451 |
1 |
24-19/36 |
.010" |
.003" |
.010" |
.092" |
|
1454/2 |
2 |
18-19/30 |
.010" |
.003" |
.021" |
.210" |
|
1451/2 |
2 |
24-19/36 |
.010" |
.003" |
.016" |
.155" |
|
1454/3 |
3 |
18-19/30 |
.010" |
.003" |
.021" |
.225" |
|
1451/3 |
3 |
24-19/36 |
.010" |
.003" |
.016" |
.162" |
|
1454/4 |
4 |
18-19/30 |
.010" |
.003" |
.023" |
.250" |
|
1451/4 |
4 |
24-19/36 |
.010" |
.003" |
.017" |
.178" |
|
1455 |
1 |
16-19/29 |
.010" |
.003" |
.016" |
.137" |
|
1452 |
1 |
22-19/34 |
.010" |
.003" |
.010" |
.100" |
|
1455/2 |
2 |
16-19/29 |
.010" |
.003" |
.023" |
.236" |
|
1452/2 |
2 |
22-19/34 |
.010" |
.003" |
.016" |
.170" |
|
1455/3 |
3 |
16-19/29 |
.010" |
.003" |
.025" |
.248" |
|
1452/3 |
3 |
22-19/34 |
.010" |
.003" |
.016" |
.180" |
|
1455/4 |
4 |
16-19/29 |
.010" |
.003" |
.025" |
.267" |
|
1452/4 |
4 |
22-19/34 |
.010" |
.003" |
.019" |
.194" |
|
1456 |
1 |
14-19/27 |
.010" |
.004" |
.020" |
.150" |
|
1453 |
1 |
20-19/32 |
.010" |
.003" |
.010" |
.108" |
|
1456/2 |
2 |
14-19/27 |
.010" |
.004" |
.027" |
.256" |
RoHS compliant constructions are available to order.
BRAIDED
TINNED
COPPER SHIELDED INSTRUMENTATION CABLES
DESCRIPTION: Each conductor
stranded tinned copper, PVC
insulation, twisted, braided tinned copper
shield, gray PVC jacket overall.
Color coded. Suitable
for sound, P.A. systems in schools, hospitals,
plants, institutions, transmiters, electronic
circuits, etc. Shield
allows easy pigtailing, and offers
mechanical protection. OPER. TEMP.: -40°C to
+80°C.
Color code: 1-Black, 2-Red, 3-White,
4-Green. STD. P-U: 500’,
1000’
|
BRIM |
No.
|
AWG |
|
Nom. |
Nom. |
Oper. |
Nom. |
|
1649 |
2 |
24 |
7/32 |
.015" |
.020" |
350V |
.162" |
|
1649/3 |
3 |
24 |
7/32 |
.015" |
.020" |
350V |
.170" |
|
1650 |
2 |
22 |
7/30 |
.015" |
.020" |
350V |
.183" |
|
1650/3 |
3 |
22 |
7/30 |
.015" |
.020" |
350V |
.198" |
|
1650/4 |
4 |
22 |
7/30 |
.015" |
.020" |
350V |
.208" |
|
1651 |
2 |
20 |
10/30 |
.015" |
.020" |
350V |
.198" |
|
1651/3 |
3 |
20 |
10/30 |
.015" |
.020" |
350V |
.218" |
|
1651/4 |
4 |
20 |
10/30 |
.015" |
.020" |
350V |
.228" |
|
1652 |
2 |
18 |
16/30 |
.017" |
.020" |
400V |
.237" |
|
1652/3 |
3 |
18 |
16/30 |
.017" |
.020" |
400V |
.247" |
|
1652/4 |
4 |
18 |
16/30 |
.017" |
.020" |
400V |
.257" |
|
1653 |
2 |
16 |
26/30 |
.017" |
.020" |
400V |
.252" |
|
1653/3 |
3 |
16 |
26/30 |
.017" |
.020" |
400V |
.262" |
|
1654 |
2 |
14 |
41/30 |
.020" |
.025" |
450V |
.300" |
|
1654/3 |
3 |
14 |
41/30 |
.020" |
.025" |
450V |
.310" |
|
1656 |
2 |
12 |
65/30 |
.020" |
.025" |
450V |
.345" |
|
1656/3 |
3 |
12 |
65/30 |
.020" |
.025" |
450V |
.355" |
OTHER
CONSTRUCTIONS ARE AVAILABLE TO
ORDER.
RoHS compliant constructions are available
to order.
ALUMINUM
MYLAR
FOIL SHIELDED INSTRUMENTATION CABLE
DESCRIPTION: Stranded tinned
copper conductors,
Polyethylene insulation, twisted,
an Aluminum mylar foil shield, foil out,
stranded TC drain wire, gray PVC
jacket overall.
Color coded. 100% shielding
coverage. Suitable as a
light-weight fully shielded
instrumentation cable. Drain wire provides
quick and easy grounding.
OPER. VOLT.:400V TEMP.: -20°C to
+80°C. Color code:
1-Black,2-Red,3-White,4-Green.
STD. P-U: 500',1000'
|
BRIM
|
No.
|
AWG |
|
Nom. |
Nom. |
Nom. |
|
1639 |
2 |
24 |
7/32 |
.015" |
.020" |
.155" |
|
1639/3 |
3 |
24 |
7/32 |
.015" |
.020" |
.172" |
|
1639/4 |
4 |
24 |
7/32 |
.015" |
.020" |
.195" |
|
1640 |
2 |
22 |
7/30 |
.015" |
.020" |
.165" |
|
1640/3 |
3 |
22 |
7/30 |
.015" |
.020" |
.182" |
|
1640/4 |
4 |
22 |
7/30 |
.015" |
.020" |
.205" |
|
1641 |
2 |
20 |
10/30 |
.015" |
.020" |
.184" |
|
1641/3 |
3 |
20 |
10/30 |
.015" |
.020" |
.202" |
|
1641/4 |
4 |
20 |
10/30 |
.015" |
.020" |
.221" |
|
1642 |
2 |
18 |
16/30 |
.017" |
.020" |
.215" |
|
1642/3 |
3 |
18 |
16/30 |
.017" |
.020" |
.233" |
|
1642/4 |
4 |
18 |
16/30 |
.017" |
.020" |
.258" |
|
1643 |
2 |
16 |
26/30 |
.017" |
.020" |
.250" |
|
1643/3 |
3 |
16 |
26/30 |
.017" |
.020" |
.273" |
|
1644 |
2 |
14 |
41/30 |
.017" |
.025" |
.295" |
|
1644/3 |
3 |
14 |
41/30 |
.017" |
.025" |
.315" |
UL 2094 is
available to order.
RoHS compliant constructions are available
to order.
OTHER
CONSTRUCTIONS ARE AVAILABLE TO
ORDER.
MIL-W-16878D
TYPE
C UNSHIELDED INSTRUMENTATION CABLES -- 1000V
DESCRIPTION: Five to nineteen
conductors of Type C-12
stranded tinned copper, .016"
wall
PVC, cabled, clear Mylar
wrap, Black 105°C PVC jacket overall.
Cable
components meet UL
VW-1 vertical flame test requirements.
Color coded. Heavy-duty
jacket provides good abrasion
resistance and good resistance to oils,
alkalis, acids solvents, moisture and
fungus. Suitable as
an interconnecting cable for power electronic
equipment, instrumentation,
control, telemetry
data and remote control of recording
instruments.
OPER. VOLT.: 1000V. OPER.
TEMP.: -55°C
to +105°C. STD.
P-U:
500', 1000'.
See color code for
multi-conductor cables.
|
BRIM |
No.
|
AWG |
|
Nom. |
Nom. |
Nom. |
|
3010/5 |
5 |
12 |
19/25 |
.016" |
.060" |
.460" |
|
3010/7 |
7 |
12 |
19/25 |
.016" |
.060" |
.500" |
|
3010/12 |
12 |
12 |
19/25 |
.016" |
.060" |
.680" |
|
3010/19 |
19 |
12 |
19/25 |
.016" |
.060" |
.745" |
RoHS compliant constructions are available to
order.
FEP & PTFE SHIELDED
INSTRUMENTATION CABLES
DESCRIPTION: One to five twisted
conductors of Type E extruded
PTFE insulation (.010" wall), over
a stranded silver-plated copper
conductor, braided silver-plated
shield with a min. coverage of 90%
over the conductor(s), and either a heat
fused double reversed PTFE tape
wrap jacket, a Teflon*
impregnated fiberglass braided jacket, or
an extruded FEP jacket, or
no jacket overall. Cables are
fungus, solvent, flame, acid, alkali, and oil
resistant.
RoHS compliant constructions are available
to order.
Stranding: 26
AWG --7 strands, 24 AWG to
16 AWG--19 strands.
OPER. VOLT:
600 Color code: 1-White,
2-Black,
3-Red, 4-Green, 5-Yellow. Jacket color:
White.
OPER. TEMP.: PTFE: -65°C to +200°C.
FEP: -60°C to +200°C
FEP
JACKET OVER SHIELD
PER MIL-W-16878— 600 VOLTS
|
Brim |
No. |
AWG |
|
Nom. |
|
Brim |
No. |
AWG |
|
Nom. |
|
1791 |
1 |
24 |
19/36 |
.087" |
|
1793/3 |
3 |
20 |
19/32 |
.172" |
|
1791/2 |
2 |
24 |
19/36 |
.130" |
|
1793/4 |
4 |
20 |
19/32 |
.193" |
|
1791/3 |
3 |
24 |
19/36 |
.136" |
|
1794 |
1 |
18 |
19/30 |
.110" |
|
1791/4 |
4 |
24 |
19/36 |
.153" |
|
1794/2 |
2 |
18 |
19/30 |
.182" |
|
1792 |
1 |
22 |
19/34 |
.092" |
|
1794/3 |
3 |
18 |
19/30 |
.200" |
|
1792/2 |
2 |
22 |
19/34 |
.148" |
|
1794/4 |
4 |
18 |
19/30 |
.217" |
|
1792/3 |
3 |
22 |
19/34 |
.155" |
|
1795 |
1 |
16 |
19/29 |
.118" |
|
1792/4 |
4 |
22 |
19/34 |
.168" |
|
1795/2 |
2 |
16 |
19/29 |
.203" |
|
1793 |
1 |
20 |
19/32 |
.100" |
|
1795/3 |
3 |
16 |
19/29 |
.215" |
|
1793/2 |
2 |
20 |
19/32 |
.163" |
|
1795/4 |
4 |
16 |
19/29 |
.233" |
Std.
P-U: 500’,1000’
PTFE
IMPREGNATED FIBERGLASS BRAID
OVER SHIELD -- MIL-W-16878 600V
|
Brim
|
No. |
AWG |
|
Nom. |
|
Brim
|
No. |
AWG |
|
Nom. |
|
1751 |
1 |
26 |
7/34 |
.064" |
|
1754/2 |
2 |
20 |
19/32 |
.157" |
|
1751/2 |
2 |
26 |
7/34 |
.115" |
|
1754/3 |
3 |
20 |
19/32 |
.167" |
|
1752 |
1 |
24 |
19/36 |
.071" |
|
1754/4 |
4 |
20 |
19/32 |
.182" |
|
1752/2 |
2 |
24 |
19/36 |
.126" |
|
1754/5 |
5 |
20 |
19/32 |
.200" |
|
1752/3 |
3 |
24 |
19/36 |
.133" |
|
1755 |
1 |
18 |
19/30 |
.110" |
|
1752/4 |
4 |
24 |
19/36 |
.150" |
|
1755/2 |
2 |
18 |
19/30 |
.175" |
|
1752/5 |
5 |
24 |
19/36 |
.161" |
|
1755/3 |
3 |
18 |
19/30 |
.187" |
|
1753 |
1 |
22 |
19/34 |
.086" |
|
1755/4 |
4 |
18 |
19/30 |
.205" |
|
1753/2 |
2 |
22 |
19/34 |
.138" |
|
1755/5 |
5 |
18 |
19/30 |
.225" |
|
1753/3 |
3 |
22 |
19/34 |
.146" |
|
1756 |
1 |
16 |
19/29 |
.118" |
|
1753/4 |
4 |
22 |
19/34 |
.159" |
|
1756/2 |
2 |
16 |
19/29 |
.188" |
|
1753/5 |
5 |
22 |
19/34 |
.177" |
|
1756/3 |
3 |
16 |
19/29 |
.205" |
|
1754 |
1 |
20 |
19/32 |
.098" |
|
1756/4 |
4 |
16 |
19/29 |
.225" |
STD. P-U: 250'
500', 1000'
PTFE
TAPE WRAP JACKET OVER
SHIELD PER MIL-W-16878 -- 600V
|
Brim
|
No.
|
AWG |
|
Nom. |
|
Brim
|
No.
|
AWG |
|
Nom. |
|
1761 |
1 |
26 |
7/34 |
.082" |
|
1764/2 |
2 |
20 |
19/32 |
.158" |
|
1761/2 |
2 |
26 |
7/34 |
.119" |
|
1764/3 |
3 |
20 |
19/32 |
.170" |
|
1762 |
1 |
24 |
19/36 |
.087" |
|
1764/4 |
4 |
20 |
19/32 |
.182" |
|
1762/2 |
2 |
24 |
19/36 |
.131" |
|
1764/5 |
5 |
20 |
19/32 |
.198" |
|
1762/3 |
3 |
24 |
19/36 |
.138" |
|
1765 |
1 |
18 |
19/30 |
.113" |
|
1762/4 |
4 |
24 |
19/36 |
.155" |
|
1765/2 |
2 |
18 |
19/30 |
.183" |
|
1762/5 |
5 |
24 |
19/36 |
.165" |
|
1765/3 |
3 |
18 |
19/30 |
.196" |
|
1763 |
1 |
22 |
19/34 |
.094" |
|
1765/4 |
4 |
18 |
19/30 |
.215" |
|
1763/2 |
2 |
22 |
19/34 |
.145" |
|
1765/5 |
5 |
18 |
19/30 |
.230" |
|
1763/3 |
3 |
22 |
19/34 |
.153" |
|
1766 |
1 |
16 |
19/29 |
.120" |
|
1763/4 |
4 |
22 |
19/34 |
.166" |
|
1766/2 |
2 |
16 |
19/29 |
.201" |
|
1763/5 |
5 |
22 |
19/34 |
.183" |
|
1766/3 |
3 |
16 |
19/29 |
.213" |
|
1764 |
1 |
20 |
19/32 |
.100" |
|
1766/4 |
4 |
16 |
19/29 |
.230" |
STD.
P-U: 250',
500',100'
Nickel-plated PTFE insulated conductors for +250°C
applications are available to
order. Smaller or
larger gauges, more conductors, shielded or
un-shielded, other color codes,
jacket colors, or 1000
Volt constructions are available to
order.
PTFE
IMPREGNATED FIBERGLASS
BRAID--NO SHIELD -- MIL-W-16878 600V
|
Brim |
No.
|
AWG |
|
Nom. |
|
Brim |
No.
|
AWG |
|
Nom. |
|
1781 |
1 |
26 |
7/34 |
.051" |
|
1784/2 |
2 |
20 |
19/32 |
.134" |
|
1781/2 |
2 |
26 |
7/34 |
.095" |
|
1784/3 |
3 |
20 |
19/32 |
.143" |
|
1782 |
1 |
24 |
19/36 |
.058" |
|
1784/4 |
4 |
20 |
19/32 |
.159" |
|
1782/2 |
2 |
24 |
19/36 |
.116" |
|
1784/5 |
5 |
20 |
19/32 |
.175" |
|
1782/3 |
3 |
24 |
19/36 |
.123" |
|
1785 |
1 |
18 |
19/30 |
.084" |
|
1782/4 |
4 |
24 |
19/36 |
.135" |
|
1785/2 |
2 |
18 |
19/30 |
.152" |
|
1782/5 |
5 |
24 |
19/36 |
.146" |
|
1785/3 |
3 |
18 |
19/30 |
.163" |
|
1783 |
1 |
22 |
19/34 |
.063" |
|
1785/4 |
4 |
18 |
19/30 |
.180" |
|
1783/2 |
2 |
22 |
19/34 |
.117" |
|
1785/5 |
5 |
18 |
19/30 |
.202" |
|
1783/3 |
3 |
22 |
19/34 |
.124" |
|
1786 |
1 |
16 |
19/29 |
.091" |
|
1783/4 |
4 |
22 |
19/34 |
.138" |
|
1786/2 |
2 |
16 |
19/29 |
.164" |
|
1783/5 |
5 |
22 |
19/34 |
.151" |
|
1786/3 |
3 |
16 |
19/29 |
.180" |
|
1784 |
1 |
20 |
19/32 |
.074" |
|
1786/4 |
4 |
16 |
19/29 |
.200" |
STD.
P-U: 500',1000'
PTFE
CONDUCTORS, BRAIDED
SHIELD, NO JACKET-- MIL-W-16878 600V
|
Brim |
No.
|
AWG |
|
Nom. |
|
Brim |
No.
|
AWG |
|
Nom. |
|
1771 |
1 |
26 |
7/34 |
.056" |
|
1774/2 |
2 |
20 |
19/32 |
.139" |
|
1771/2 |
2 |
26 |
7/34 |
.100" |
|
1774/3 |
3 |
20 |
19/32 |
.148" |
|
1772 |
1 |
24 |
19/36 |
.067" |
|
1774/4 |
4 |
20 |
19/32 |
.163" |
|
1772/2 |
2 |
24 |
19/36 |
.111" |
|
1774/5 |
5 |
20 |
19/32 |
.180" |
|
1772/3 |
3 |
24 |
19/36 |
.118" |
|
1775 |
1 |
18 |
19/30 |
.090" |
|
1772/4 |
4 |
24 |
19/36 |
.129" |
|
1775/2 |
2 |
18 |
19/30 |
.159" |
|
1772/5 |
5 |
24 |
19/36 |
.140" |
|
1775/3 |
3 |
18 |
19/30 |
.170" |
|
1773 |
1 |
22 |
19/34 |
.072" |
|
1775/4 |
4 |
18 |
19/30 |
.187" |
|
1773/2 |
2 |
22 |
19/34 |
.123" |
|
1775/5 |
5 |
18 |
19/30 |
.210" |
|
1773/3 |
3 |
22 |
19/34 |
.130" |
|
1776 |
1 |
16 |
19/29 |
.097" |
|
1773/4 |
4 |
22 |
19/34 |
.144" |
|
1776/2 |
2 |
16 |
19/29 |
.175" |
|
1773/5 |
5 |
22 |
19/34 |
.154" |
|
1776/3 |
3 |
16 |
19/29 |
.184" |
|
1774 |
1 |
20 |
19/32 |
.080" |
|
1776/4 |
4 |
16 |
19/29 |
.204" |
Std.
P-U: 500’,1000’
Nickel-plated
PTFE
insulated conductors for +250°C applications for our 1751/, 1761/,
1771/, & 1781/
series are available to
order. Smaller or larger gauges,
more
conductors, shielded or unshielded,
other color codes, jacket colors, or 1000Volt
constructions are available
to
order.
BRIM ELECTRONICS, INC. 120
TEL: 201-796-2886 FAX:
973-778-2792 E-MAIL:info@brimelectronics.com
