RETRACTED LENGTHS: 1, 2, 3, & 4 ft. EXTENDED LENGTHS: 6, 11, 16, & 22ft.
BRIM ELECTRONICS, INC. IS PLEASED TO ANNOUNCE
THE EXPANSION OF OUR POWER RETRACTILE CORDS
NOW IN TPE (ThermoPlasticElastomer), IN 3 CONDUCTOR 18 AWG THRU 4 CONDUCTOR
8 AWG CONFIGURATIONS,
FOR LONGER LASTING UL/CSA APPROVED CORDS.
FOR FURTHER INFORMATION INCLUDING PRICE AND
DELIVERY CONTACT MATTHEW AARON TEL#: 201-796-2886, FAX: 973-778-2792 OR
E-MAIL: info@brimelectronics.com.
TPE
POWER RETRACTILE CORDS
UL & CSA TPE POWER RECTRACTILE CORDS
RETRACTED LENGTHS: 1, 2, 3, & 4
ft. EXTENDED LENGTHS: 6, 11, 16, & 22ft.
BRIM retractile cords are long lasting,
and useful, where cords must change their length or position.
Our cords will extend to approximately
six times their retracted length & will return to their original
shape and length, when they are released.
Retractile cords eliminate tangles, twists, knots.
TPE is ThermoPlasticElastimer.
OPER. TEMPERATURE: -40°C to +105°C.
VOLT. RATING: SVT, SVEO, SJEOW, SJTOW, SJEOOW &SJTOOW -- 300V.
VOLT. RATING: SEOW & STOW -- 600V.
COND. COLOR CODE: 1-Black, 2-White,
3-Red, 4-Green, 5-Orange, 6-Blue, 7-Yellow. STD.PKG.:6
TPE
| BRIM 4Ft. |
No. 3Ft. |
Retrac'd 2Ft. |
Lengths 1Ft. |
No. Cond. |
AWG | Strand. | UL/CSA Type |
Amps | Nom. O.D. Coil |
Nom. O.D. Cord |
| 181-4 | 181-3 | 181-2 | 181-1 | 2 | 18 | 41/34 | SVEO/ SVT** |
10 | 7/8" | .255" |
| 181/3-4 | 181/3-3 | 181/3-2 | 181/3-1 | 3 | 18 | 41/34 | SVEO/ SVT** |
10 | 15/16" | .265" |
| 182-4 | 182-3 | 182-2 | 182-1 | 2 | 18 | 41/34 | SJEOOW/ SJTOOW** |
10 | 1" | .300" |
| 182/3-4 | 182/3-3 | 182/3-2 | 182/3-1 | 3 | 18 | 41/34 | SJEOOW/ SJTOOW** |
10 | 1 3/8" | .335" |
| 182/4-4 | 182/4-3 | 182/4-2 | 182/4-1 | 4 | 18 | 41/34 | SJEOOW/ SJTOOW** |
7 | 1 7/16" | .350" |
| 182/5-4 | 182/5-3 | 182/5-2 | 182/5-1 | 5 | 18 | 41/34 | SJEOW/ SJTOW* |
7 | 1 7/16" | .390" |
| 182/7-4 | ------ | 182/7-2 | ------ | 7 | 18 | 41/34 | SEOW/ STOW* |
7 | 1 7/8" | .505" |
| 182/10-4 | 182/10-3 | 182/10-2 | 182/10-1 | 10 | 18 | 41/34 | SEOW/ STOW* |
7 | 2 3/8" | .595" |
| 183-4 | 183-3 | 183-2 | 183-1 | 2 | 16 | 65/34 | SJEOOW/ SJTOOW** |
13 | 1 3/8" | .320" |
| 183/3-4 | 183/3-3 | 183/3-2 | 183/3-1 | 3 | 16 | 65/34 | SJEOOW/ SJTOOW** |
13 | 1 7/16" | .360" |
| 183/4-4 | 183/4-3 | 183/4-2 | 183/4-1 | 4 | 16 | 65/34 | SJEOOW/ SJTOOW** |
10 | 1 5/8" | .415" |
| 184/4-4 | 184/4-3 | 184/4-2 | 184/4-1 | 4 | 16 | 65/34 | SEOW/ STOW* |
10 | 1 9/16" | .430" |
| 184/6-4 | ---- | 184/6-2 | ---- | 6 | 16 | 65/34 | SEOW/ STOW* |
10 | 2" | .535" |
| 184/8-4 | ---- | 184/8-2 | ---- | 8 | 16 | 65/34 | SEOW/ STOW* |
10 | 2 1/8" | .575" |
| 185/3-4 | 185/3-3 | 185/3-2 | 185/3-1 | 3 | 14 | 41/30 | SEOW/ STOW* |
16 | 2 1/8" | .545" |
| 185/4-4 | 185/4-3 | 185/4-2 | 1844-1 | 4 | 14 | 41/30 | SEOW/ STOW* |
16 | 2 3/8" | .575" |
| 186/3-4 | 186/3-3 | 186/3-2 | 186/3-1 | 3 | 12 | 65/30 | SEOW/ STOW* |
20 | 2 3/8" | .585" |
| 186/4-4 | 186/4-3 | 186/4-2 | 186/4-1 | 4 | 12 | 65/30 | SEOW/ STOW* |
20 | 2 7/16" | .665" |

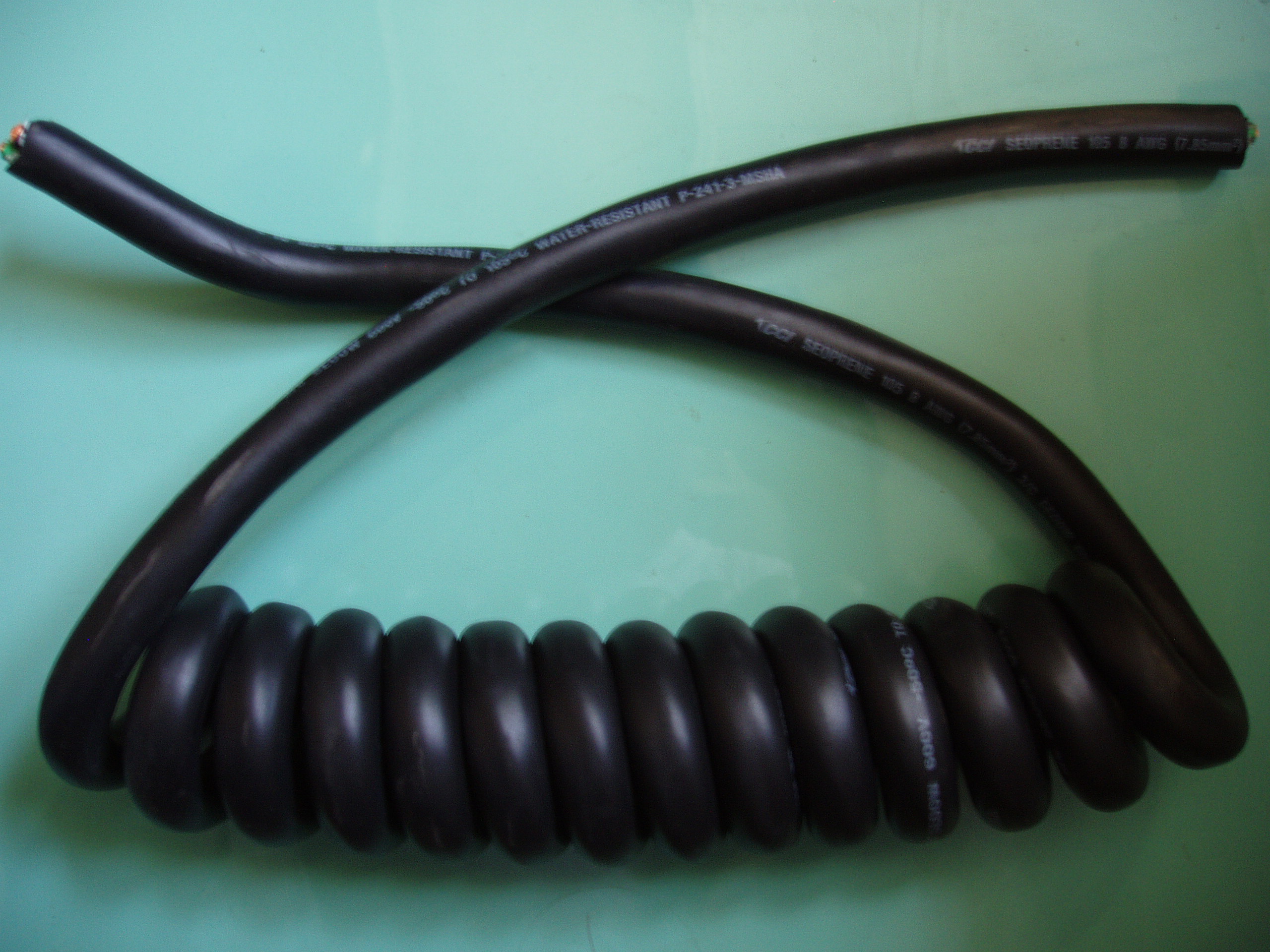

| ---- | ---- | ---- | 188/3-1 | 3 | 8 | 96/28 | SEOOW* | 25 | 2 3/8" | .690" |
| ---- | ---- | ---- | 188/4-1 | 4 | 8 | 96/28 | SEOOW* | 25 | 2 7/16" | .700" |
When UL Type shown, cord is also
ULC & CSA approved.
*RoHS compliant. **RoHS compliant constructions
are available to order.
Other constructions available to order.
BRIM
ELECTRONICS, INC.
120 HOME PLACE
LODI, NJ 07644
