BRIM NYLON CIRCUIT BOARD SUPPORTS


 BRIM NYLON CIRCUIT BOARD SUPPORTS:
               LOCKING & DOUBLE LOCKING TYPES

These circuit board supports require no special tools, screws, rivets, etc. to hold boards permanently
together--just your fingers.  Inexpensive, yet reliable.
LOCKING TYPE: The specially designed tension flange on top is very strong.  It compresses upon entry
and springs back out to overlap & secure the board.  By squeezing the flange, it can be easily removed
for board repair or replacement.  The specially designed "arrow" locking device on the other end easily
snaps into a hole where it expands to lock in permanently.

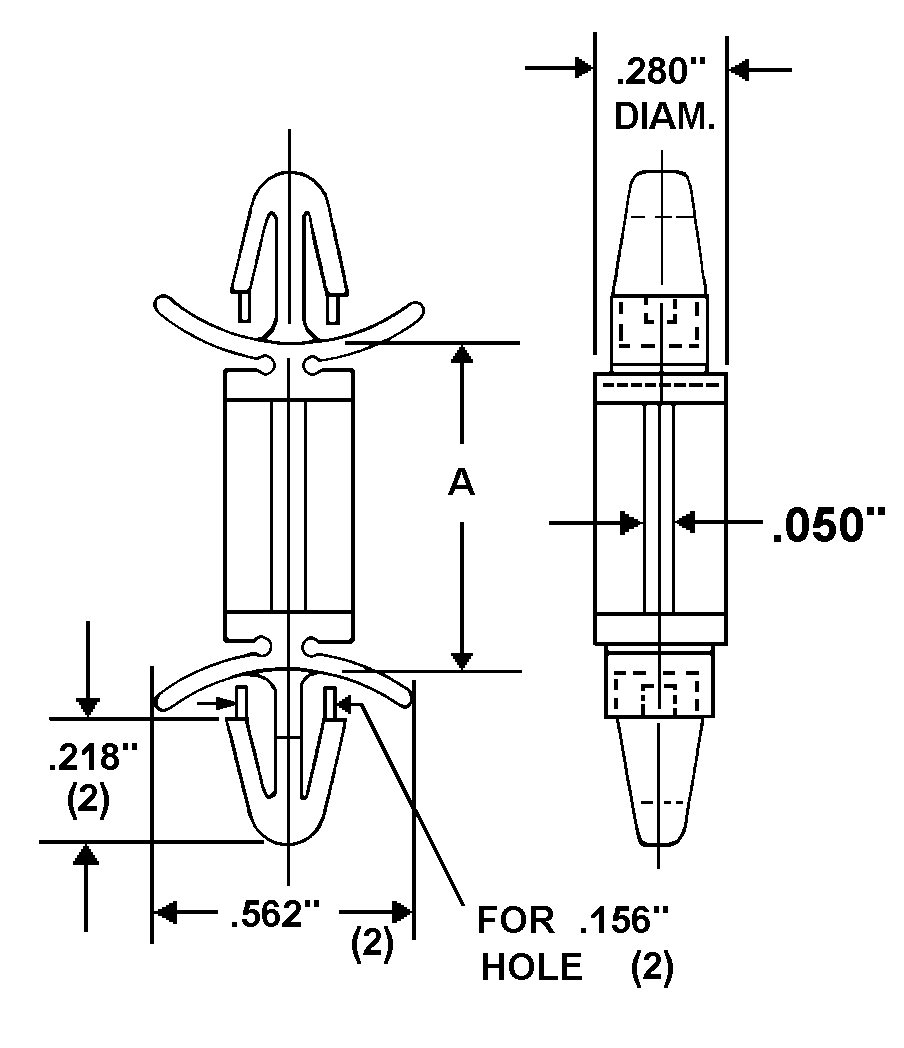

DOUBLE LOCKING TYPE: Has the same special "arrow" locking device at both ends--used to maintain
the desired spacing between circuit boards.  Oper. Temp.: -50°F to +185°F.
Material: High dielectric strength 6/6 Nylon--high tensile strength, non-magnetic, shock, lightweight,
chemical & corrosion resistant.  Color: Natural (White).    RoHS compliant.                         Pkg.: 1000.





Brim No.
Locking
  Double
 Locking
Body
Diam.
   A
CBSL-1 CBSDL-1  7/32"  3/16"
CBSL-2 CBSDL-2  7/32"   1/4"
CBSL-3 CBSDL-3  7/32"   3/8"
CBSL-4 CBSDL-4  7/32"   1/2"
CBSL-5 CBSDL-5  7/32"   5/8"
CBSL-6 CBSDL-6  7/32"   3/4"
CBSL-7 CBSDL-7  7/32"   7/8"
CBSL-8 CBSDL-8  7/32"    1"
CBSL-9 CBSDL-9  7/32" 1 1/4"
CBSL-10 CBSDL-10  7/32" 1 1/8"
CBSL-11 CBSDL-11  7/32" 1 3/8"
CBSL-12 CBSDL-12  7/32"  7/16"




BRIM ELECTRONICS, INC.    120 HOME PLACE          LODI, NJ 07644
TEL: 201-796-2886   FAX: 973-778-2792   E-MAIL:info@brimelectronics.com
