BRIM NYLON HARDWARE


   BRIM NYLON MACHINE SCREWS

Nylon 6/6 has outstanding insulation qualities, such as resistance to chemicals, corrosion, shock,
heat, vibrations, plus superior torque strength, it is lightweight, and non-magnetic.
Continuous Operating Temperature: +300F.  Color: Natural (White).           Std. Pkg.: 100, 1000.




Brim
No.

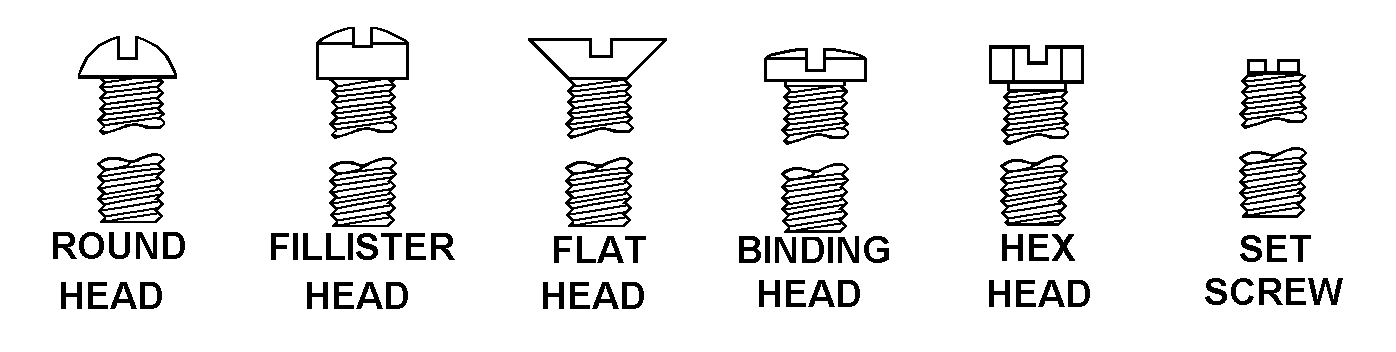

    Size  Head
 Type

Brim
No.
    Size  Head
 Type

Brim
No.
     Size  Head
 Type

Brim
No.
      Size  Head
 Type
480 2-56X1/4" Round
486 4-40X3/4" Round
492 8-32X1/4" Round
498 10-32X1/2" Round
480A 2-56X1/4" Fill.
486A 4-40X3/4" Fill.
492A 8-32X1/4" Fill.
498A 10-32X1/2" Fill.
480B 2-56X1/4" Flat
486B 4-40X3/4" Flat
492B 8-32X1/4" Flat
498B 10-32X1/2" Flat
480C 2-56X1/4" Bind.
486C 4-40X3/4" Bind.
492C 8-32X1/4" Bind.
498C 10-32X1/2" Bind.
480D 2-56X1/4" Hex
486D 4-40X3/4" Hex
492D 8-32X1/4" Hex
498D 10-32X1/2" Hex
480E 2-56X1/4" SetS.
486E 4-40X3/4" SetS.
492E 8-32X1/4" SetS.
498E 10-32X1/2" SetS.
481 2-56X3/8" Round
487 6-32X1/4" Round
493 8-32X3/8" Round
499 10-32X5/8" Round
481A 2-56X3/8" Fill.
487A 6-32X1/4" Fill.
493A 8-32X3/8" Fill.
499A 10-32X5/8" Fill.
481B 2-56X3/8" Flat
487B 6-32X1/4" Flat
493B 8-32X3/8" Flat
499B 10-32X5/8" Flat
481C 2-56X3/8" Bind.
487C 6-32X1/4" Bind.
493C 8-32X3/8" Bind.
499C 10-32X5/8" Bind.
481D 2-56X3/8" Hex
487D 6-32X1/4" Hex
493D 8-32X3/8" Hex
499D 10-32X5/8" Hex
481E 2-56X3/8" SetS.
487E 6-32X1/4" SetS.
493E 8-32X3/8" SetS.
499E 10-32X5/8" SetS.
482 2-56X1/2" Round
488 6-32X3/8" Round
494 8-32X1/2" Round
475 10-32X3/4" Round
482A 2-56X1/2" Fill.
488A 6-32X3/8" Fill.
494A 8-32X1/2" Fill.
475A 10-32X3/4" Fill.
482B 2-56X1/2" Flat
488B 6-32X3/8" Flat
494B 8-32X1/2" Flat
475B 10-32X3/4" Flat
482C 2-56X1/2" Bind.
488C 6-32X3/8" Bind.
494C 8-32X1/2" Bind.
475C 10-32X3/4" Bind.
482D 2-56X1/2" Hex
488D 6-32X3/8" Hex
494D 8-32X1/2" Hex
475D 10-32X3/4" Hex
482E 2-56X1/2" SetS.
488E 6-32X3/8" SetS.
494E 8-32X1/2" SetS.
475E 10-32X3/4" SetS.
483 4-40X1/4" Round
489 6-32X3/8" Round
472 8-32X5/8" Round
500 10-32X1" Round
483A 4-40X1/4" Fill.
489A 6-32X1/2" Fill.
472A 8-32X5/8" Fill.
500A 10-32X1" Fill
483B 4-40X1/4" Flat
489B 6-32X1/2" Flat
472B 8-32X5/8" Flat
500B 10-32X1" Flat
483C 4-40X1/4" Bind.
489C 6-32X1/2" Bind.
472C 8-32X5/8" Bind.
500C 10-32X1" Bind.
483D 4-40X1/4" Hex
489D 6-32X1/2" Hex
472D 8-32X5/8" Hex
500D 10-32X1" Hex
483E 4-40X1/4" SetS.
489E 6-32X1/2" SetS.
472E 8-32X5/8" SetS.
500E 10-32X1" SetS.
484 4-40X3/8" Round
471 6-32X5/8" Round
495 8-32X3/4" Round
501 10-32X1 1/4" Round
484A 4-40X3/8" Fill.
471A 6-32X5/8" Fill.
495A 8-32X3/4" Fill.
501D 10-32X1 1/4" Hex
484B 4-40X3/8" Flat
471B 6-32X5/8" Flat
495B 8-32X3/4" Flat
476 10-32X1 1/2" Round
484C 4-40X3/8" Bind.
471C 6-32X5/8" Bind.
495C 8-32X3/4" Bind.
476C 10-32X1 1/2" Bind.
484D 4-40X3/8" Hex
471D 6-32X5/8" Hex
495D 8-32X3/4" Hex
476D 10-32X1 1/2" Hex
484E 4-40X3/8" SetS.
471E 6-32X5/8" SetS.
495E 8-32X3/4" SetS.
506 1/4-20X3/4" Round
485 4-40X1/2" Round
490 6-32X3/4" Round
496 8-32X1" Round
506E 1/4-20X3/4" SetS.
485A 4-40X1/2" Fill.
490A 6-32X3/4" Fill.
496A 8-32X1" Fill.
502 1/4-20X1" Round
485B 4-40X1/2" Flat
490B 6-32X3/4" Flat
496B 8-32X1" Flat
502A 1/4-20X1" Fill.
485C 4-40X1/2" Bind.
490C 6-32X3/4" Bind.
496C 8-32X1" Bind.
502B 1/4-20X1" Flat
485D 4-40X1/2" Hex
490D 6-32X3/4" Hex
496D 8-32X1" Hex
502C 1/4-20X1" Bind.
485E 4-40X1/2" SetS.
490E 6-32X3/4" SetS.
496E 8-32X1" SetS.
502D 1/4-20X1" Hex
470 4-40X5/8" Round
491 6-32X1" Round
473 8-32X1 1/4" Round
502E 1/4-20X1" SetS.
470A 4-40X5/8" Fill.
491A 6-32X1" Fill.
473D 8-32X1 1/4" Hex
503 1/4-20X1 1/4" Round
470B 4-40X5/8" Flat
491B 6-32X1" Flat
474 10-32X3/8" Round
503D 1/4-20X1 1/4" Hex
470C 4-40X5/8" Bind.
491C 6-32X1" Bind.
474A 10-32X3/8" Fill.
504 1/4-20X1 1/2" Round
470D 4-40X5/8" Hex
491D 6-32X1" Hex
474D 10-32X3/8" Hex
504D 1/4-20X1 1/2" Hex
470E 4-40X5/8" SetS.
491E 6-32X1" SetS.
474E 10-32X3/8" SetS.
505 1/4-20X2" Round

Additional sizes and head types are available to order.        Metric sizes are available to order.
RoHS compliant.      Teflon machine screws are available to order.


   BRIM NYLON ACORN/CAPS NUTS--HEX NUTS--FLAT WASHERS

Nylon has outstanding insulation qualities, such as resistance to chemicals, corrosion, shock, heat,
vibrations, plus superior torque strength, it is lightweight, and non-magnetic.
Continuous Operating Temperature: +300F.  Color: Natural (White).           Std. Pkg.: 100, 1000.

ACORN/CAP NUTS            HEX NUTS             FLAT WASHERS

Brim
No.
 Size Thread
 Depth
 O/A
  Ht.
 Hex
 O.D.

Brim
No.
 Size Nom.
 O.D.
 Nom.
Thick.

Brim
No.
Size Nom.
 I.D.
Nom.
 O.D.
 Nom.
Thick.
402  4-40   .210" .280" .250"
410   2-56 .180"  .070"
411    2 .093"  1/4"  .016"
402A  6-32   .210" .345" .305"
410A   4-40 .250"  .100"
411A    4 .115"  1/4"  .016"
402B  8-32   .250" .375" .330"
410B   6-32 .305"  .120"
411B    6 .141" 5/16"  .032"
402C 10-32   .315" .400" .365"
410C   8-32 .335"  .130"
411C    8 .170"  3/8"  .032"
402D 1/4-20   .405" .475" .425"
410D  10-32 .365"  .135"
411D   10 .195"  3/8"  .032"






410E 1/4-20 .425"  .200"
411E  1/4" .257"  5/8"  .032"

Additional sizes and head types are available to order.   Metric sizes are available to order.
RoHS compliant.


   BRIM NYLON ROUTING CLIPS

BRIM BRC routing clips are perfect for circuit board routing of wire and cable bundles.  They are made
in single & dual routing forms, in 1/8", 3/16" and 1/4" holding capacities, and are made so they can be
used in applications which require densely packed boards, or boards with limited space.
These clips install in a hole diameter as small as .125", in a board as thick as .062".  Just pop the clip
into the board, then press the wire or cable bundle inside the single or double "U" shaped form.
Made from tough 6/6 Nylon.  Color: Natural (White).  Oper. Temp.:+185F.             Std. Pkg.: 100, 1000.



Brim No.    A    B    C    D    E
BRC1-1 .200" .490" .137" .125" .170"
BRC1-2 .240" .560" .168" .187" .240"
BRC1-3 .270" .620" .200" .250" .300"
BRC2-1 .410" .660" .137" .125" .170"
BRC2-2 .480" .790" .168" .187" .240"
BRC2-3 .550" .940" .200" .250" .300"

RoHS compliant.


   BRIM NYLON TENSION CLIP

Made from Celcon Nylon for strength & elasticity.  Easily & repeatedly fastens & removes.   Clip
insulates, & it is non-magnetic, has corrosion & chemical resistance, & it is resistant to UV rays*.
Holds wires, cables, tubings, pipes, panels, etc. of up to 3/8" diameter.  Color: Natural (White).
Mount with screw, nail, rivet.   Oper. Temp.: +175F.                           Std. Pkg.: 100, 1000.



Brim
No.
   O/A
Length
  O/A
Height
Width Hold.
Cap.
 Hole
Diam.
Nom.
Thick
404 1 5/16"  .290"  .375" .375"  .150" .062"

*Black, available to order.  RoHS compliant.



BRIM NYLON CIRCUIT BOARD SUPPORTS:

LOCKING & DOUBLE LOCKING TYPES

These circuit board supports require no special tools, screws, rivets, etc. to hold boards permanently
together--just your fingers.  Inexpensive, yet reliable.

LOCKING TYPE: The specially designed tension flange on top is very strong.  It compresses upon entry
and springs back out to overlap & secure the board.  By squeezing the flange, it can be easily removed
for board repair or replacement.  The specially designed "arrow" locking device on the other end easily
snaps into a hole where it expands to lock in permanently.

DOUBLE LOCKING TYPE: Has the same special "arrow" locking device at both ends--used to maintain
the desired spacing between circuit boards.  Oper. Temp.: -50F to +185F.

Material: High dielectric strength 6/6 Nylon--high tensile strength, non-magnetic, shock, lightweight,
chemical & corrosion resistant.  Color: Natural (White).      RoHS compliant.              Pkg.: 1000.





Brim No.
Locking
  Double
 Locking
Body
Diam.
   A
CBSL-1 CBSDL-1  7/32"  3/16"
CBSL-2 CBSDL-2  7/32"   1/4"
CBSL-3 CBSDL-3  7/32"   3/8"
CBSL-4 CBSDL-4  7/32"   1/2"
CBSL-5 CBSDL-5  7/32"   5/8"
CBSL-6 CBSDL-6  7/32"   3/4"
CBSL-7 CBSDL-7  7/32"   7/8"
CBSL-8 CBSDL-8  7/32"   1"
CBSL-9 CBSDL-9  7/32" 1 1/4"
CBSL-10 CBSDL-10  7/32" 1 1/8"
CBSL-11 CBSDL-11  7/32" 1 3/8"
CBSL-12 CBSDL-12  7/32"  7/16"

Additional sizes, including miniature & flame retardant circuit board supports are available to order.



   BRIM NYLON SPACERS/BUSHINGS

Nylon has high tensile & torque strength.  Wide flange isolates screw from mounting surface.
Per MIL-P-20693A+.  Color: Natural (White).    Oper. Temp.: +185F             Std. Pkg.: 100, 1000.



Brim
No.
Size Nom.
 I.D.
    A    B    C    D
380    4 .115"   .235" 3/64"  1/4" .145"
380A    6 .140"   .290" 3/64"  1/4" .170"
380B    8 .170"   .345" 1/16"  3/8" .205"
380C   10 .200"   .400" 1/16"  3/8" .260"
380D  1/4" .260"   .515" 1/16"  3/8" .310"
380E  3/8" .390"   .750" 3/32" 7/64" .577"
380F  1/2" .515" 1.125" 1/16" 3/32" .745"

Additional sizes are available to order.  RoHS compliant.  +Now called MIL-M-20693A


   BRIM NYLON SHOULDER WASHERS

Nylon has high tensile & torque strength, lightweight, non-magnetic, chemical & corrosion resistant.
Per MIL-P-20693A+.  Color: Natural (White).   Oper. Temp.: +185F                       Std. Pkg.: 100, 1000.


Brim No.  Size    A    B    C    D    E
403     2 .093" .250" .055" .025" .155"
403A     4 .112" .250" .062" .031" .187"
403B     6 .141" .250" .093" .031" .187"
403C     6 .141" .312" .093" .031" .187"
403D     6 .142" .375" .093" .031" .240"
403E     8 .170" .375" .093" .031" .245"
403F    10 .195" .375" .093" .031" .310"
403G   1/4" .250" .500" .093" .031" .312"
403H 17/64" .265" .500" .093" .031" .358"
403I   3/8" .378" .625" .093" .031" .500"
403J   3/8" .378" .750" .093" .031" .500"

Additional sizes are available to order.  RoHS compliant. +Now called MIL-M-20693A


BRIM/TYTM NYLON TWIST TIES    -- REUSABLE

Reusable 6/6 Nylon twist ties.  Fast temporary or permanent bundling of wires, cables, cords, pipes,
tubings, etc.  Just slip the tie around the bundle and twist the ends.  To reopen, untwist ends.  Twist
ties will hold your bundle or harness securely & firmly.  Color: Natural (White).  Oper. Temp.:+185F.


Brim
No.
  O/A
   Ht.
    Bundle
     Diam.
    Std.
    Pkg.
401F   .715" .110"---.140" 100,1000
401   .875" .200"---.300" 100,1000
401A 1.100" .300"---.400" 100,1000
401B 1.200" .400"---.500" 100,1000
401D 1.260" .550"---.650" 100,1000
401C 1.550" .700"---.800" 100,1000
401E 1.870" .900"---1.00" 100,1000

Larger capacity Twist Ties are available to order.  RoHS compliant.


BRIM/TYTM NYLON WIRE TIES  -- MS-3367

6/6 Nylon for strength, fungus, chemical & corrosion resistance, it is non-magnetic, & self-extinguishing.
Easy to tie.  Just wrap around harness/bundle, place tapered end thru the special locking device and
pull tight.  Serrated edges hold tightly and securely.  Won't slip.  Can use with any standard tie wrapping
hand gun.  When secured, trim off excess wrap.  Oper. Temp.: +185F.  Color: Natural (White)
Commercial types and per MS-3367.     RoHS compliant.                                  Std. Pkg.: 100,1000


Brim
No.
 MIL
Type
Bundle
  Min.
Diam.
Max.*
  O/A
Length
 Tensile
Strength
 Nom.
Thick.
 Nom.
Width
110E   ---   1/16"   1/2"     3"     18#  .030"  .090"
110   -4   1/16"   3/4"  4 1/2"     18#  .045"  .100"
110A   -5   1/16" 1 1/4"  5 3/4"     30#  .055"  .145"
110F   -1   1/16"    2"     8"     50#  .055"  .190"
110B   -7   1/16" 2 3/4" 10 3/4"     50#  .055"  .190"
110H   -2   1/16" 4 1/2" 15 1/4"     50#  .055"  .190"
110G   -3   3/16" 4 1/4"    15"    120#  .085"  .300"
110C   ---   3/16" 4 1/4"    15"    120#  .070"  .300"
110J   -6   3/16"    9"    32"    120#  .070"  .300"

Additional sizes are available to order.   *Bundle diameter.


BRIM/TYTM DOUBLE NYLON WIRE TIES

6/6 Nylon for strength, fungus chemical & corrosion resistance, it is non-magnetic, & self-extinguishing.
Easy to tie.  Just wrap around harness/bundle, place tapered end thru the special locking device and
pull tight.  Serrated edges hold tightly and securely.  Won't slip.  Can use with any standard tie wrapping
hand gun.  When secured, trim off excess wrap.  Double holding feature allows tying two bundles in a
secure & economical manner, or securing one bundle now & fastening, harnessing or bundle a second
group of wires, cables, etc. at al later time.  Oper. Temp.: +185F.  Color: Natural (White)
RoHS compliant.                            Std. Pkg.: 100,1000


Brim
No.
   O/A
Length
 Head
Height
 Head
Length
Head
Width
 Tensile
Strength
 Nom.
Thick.
 Nom.
Width
108-1  8 7/8"  .210"  .640"  .310"     50#  .050"  .190"
108-3R* 15 5/8"  .210"  .640"  .310"     50#  .050"  .190"
108-3 15 5/8"  .210"  .640"  .310"     50#  .050"  .190"

*Second loop is releasable.


BRIM/TYTM REUSABLE NYLON WIRE TIES

6/6 Nylon for strength, fungus chemical & corrosion resistance, it is non-magnetic, & self-extinguishing.
Easy to tie.  Just wrap around harness/bundle, place tapered end thru the special locking device and
pull tight.  Serrated edges hold tightly and securely.  Won't slip.  Can use with any standard tie wrapping
hand gun.  When secured, trim off excess wrap.  Reusable tab feature allows repeated closing and
opening of tie in those situations where changes or repairs in a wire or cable bundle are required.
Simply depress the protruding tab in the head to release/remove the tie from the bundle or harness,
making it reusable.    Oper. Temp.: +185F.  Color: Natural (White)**  RoHS compliant.    Std. Pkg.: 100,1000


Brim
No.
  O/A+
Length
Min.*
Diam.
Max.*
Diam.
 Tensile
Strength
   A     B    C  Nom.
Thick.
 Nom.
Width
109-1     6"  3/16" 1 1/2"     50# .330" .250" .210"  .050"  .190"
109-2     8"  3/16"    2"     50# .330" .250" .210"  .050"  .190"
109-3  8 1/2"  3/16"    2"    120# .510" .406" .300"  .070"  .300"
109-4    15"    2" 4 1/4"    120# .510" .406" .300"  .070"  .300"
109-5 21 1/4"    2" 5 7/8"    120# .510" .406" .300"  .070"  .300"

*Bundle diameter.         **Black UV ties are available to order.    +Excludes head.
Other sizes are available to order.


BRIM/TYTM MARKER IDENTIFICATION NYLON WIRE TIES

6/6 Nylon for strength, fungus chemical & corrosion resistance, it is non-magnetic, & self-extinguishing.
Easy to tie.  Just wrap around harness/bundle, place tapered end thru the special locking device and
pull tight.  Serrated edges hold tightly and securely.  Won't slip.  Can use with any standard tie wrapping
hand gun.  When secured, trim off excess wrap.  Matted surface near the head of the tie accepts pencil,
ink or marker identification of wire, cable or tubing bundles.  Two configurations to allow marking above
or below the head of the tie.   Oper. Temp.: +185F.  Color: Natural (White)                Std. Pkg.: 100,1000


Brim
No.
   O/A
Length
  M/S*
Height
 M/S*
Width
Max.**
Diam.
 Tensile
Strength
 Nom.
Thick.
 Nom.
Width
110M-1  4 1/2"   5/16"    1"   3/4"     18#  .030"  .100"
110M-2  4 1/2"   3/8" 13/16"   3/4"     18#  .030"  .100"

*M/S=Matted surface.  **Bundle diameter.  RoHS compliant.


BRIM NYLON CABLE CLAMPS

Zytel 101 Nylon per MIL-P-20693A+ for strength, fungus, chemical (oils, acids, solvents, alcohol, gasoline,
hydraulic fluids), corrosion, shock, vibration resistant, it is non-magnetic, lightweight, and won't support
combustion.  It's non-abrasive smooth finish & rounded edges deter harm to item being held, eg. shorts.
Use as a clamp, clip, hanger, strain relief, strap, fastener.
Oper. Temp.: -60F to +300F.          Color: Natural (White)*                               Std. Pkg.: 100,1000



Brim
No.
Capacity
  /Size
   A   B    C    D
106     1/8" .328" 3/8" .167" .050"
106A    3/16" .391" 3/8"  .167" .050"
106B     1/4" .410" 3/8" .167" .050"
106C    5/16" .453" 3/8"  .167" .050"
106D     3/8" .484" 3/8" .167" .050"
106E    7/16" .531" 3/8"  .167" .050"
106F     1/2" .562" 3/8" .167" .050"
106G    9/16" .594" 1/2"  .173" .062"
106H     5/8" .625" 1/2" .173" .062"
106I   11/16" .656" 1/2" .173" .062"
106J     3/4" .766" 1/2" .173" .062"
106K     7/8" .812" 1/2" .173" .062"
106L      1" .905" 1/2" .173" .062"
106M   1 1/8" .970" 1/2" .203" .062"

Teflon and Black Nylon (for UV protection) cable clamps are available to order.
* Flame retardant Nylon cable clamps are available to order.   RoHS compliant. +Now called MIL-P-20693A



 BRIMGARD CONTINUOUS GROMMETS

Brimgard protects regular and irregular shaped edges and openings, or prevent damage to wires,
cables, tubings, hoses, etc. placed through sharp edged panels, or openings.  Smooth out rough
edges.  Make them safe, fray-free.  "Finish-off" enclosures or other products.  Being continuous, you
can cut the grommet to the exact size/length you want, then place over the panel edge to be covered.
It fits snugly, & securely.  It wont jar loose.  Eliminate the need to buy and stock a variety of grommets.
Material:  Polyethylene (for general all-purpose uses) and Nylon (for severe conditions).
Color: Natural+                                                                                     Std. Pkg.: 100,1000

                   POLYETHYLENE

Brimgard No.
Solid

Serrated

   A

   B

        C
BPG-1 BPGS-1 .125" .031" .026"--.036"
BPG-2 BPGS-2 .172" .031" .037"--.071"
BPG-2.5 BPGS-2.5 .172" .031" .072"--.105"
BPG-3 BPGS-3 .188" .047" .106"--.164"
BPG-4 BPGS-4 .188" .047" .165"--.187"
BPG-5 BPGS-5 .188" .047" .188"--.250"

                             NYLON*

Brimgard No.
Solid

Serrated

   A

   B

  C
BNG-1 BNGS-1 .125" .031" .026"--.036"
BNG-2 BNGS-2 .172" .031" .037"--.071"
BNG-2.5 BNGS-2.5 .172" .031" .072"--.105"
BNG-3 BNGS-3 .188" .047" .106"--.164"
BNG-4 BNGS-4 .188" .047" .165"--.187"
BNG-5 BNGS-5 .188" .047" .188"--.250"

* Conforms to MIL-M-22096 Type 4. RoHS compliant.
+ Black is available to order.  To order add "B" to the end of the part number.




BRIM ELECTRONICS, INC.    120 HOME PLACE          LODI, NJ 07644
TEL: 201-796-2886   FAX: 973-778-2792   E-MAIL: info@brimelectronics.com
