BRIM UL PORTABLE CORDAGE
PORTABLE CORDAGE--PLASTIC &
WEATHER RESISTANT---UL
PLASTIC GENERAL ALL-PURPOSE CORDAGE
DESCRIPTION: Each conductor
is stranded bare copper, PVC insulation, fillers where necessary,
seperator, general all-purpose Gray* PVC jacket overall. UL
recognized. General all-purpose
PVC jacketed cordage is suitable for most in-door applications.
COLOR CODE : 1-Black, 2-White, 3-Green, 4-Red. STD.
P-U: 250'.
Oper.Voltages: 600V--Type: STO 300V--Types
SVTO, SJTO Oper.Temp.: -20°C to +60°C.
Cables are resistant to many acids, oils, moisture, solvents alkalis &
fungus.
USES: STO--For heavy duty applications such as garage doors, portable lights,
battery chargers,
heavy
tools & equipment, if environment contains oils, acids, alkalis,
ozone.
SJTO--For
medium duty applications, such as portable appliances, small to mid-size
motors
&
tools, if environment contains oils, acids, alkalis, ozone.
SVTO--For
light duty applications such as vacuum cleaners, food mixers, office equipment,
light
motors & tools, if environment contains oils, acids, alkalis,
ozone.
BRIM No. |
UL Type |
AWG/# Cond. |
Strand. | Nom. Wall |
Nom. Jack. |
Nom. O.D. |
AMPS /Cond. |
1830/3 | SVTO | 18/3 | 41/30 | .015" | .030" | .237" | 7 |
1831 | SJTO | 18/2 | 16/30 | .030" | .030" | .285" | 7 |
1831/3 | SJTO | 18/3 | 16/30 | .030" | .030" | .300" | 7 |
1831/4 | SJTO | 18/4 | 16/30 | .030" | .030" | .330" | 6 |
1832 | SJTO | 16/2 | 26/30 | .030" | .030" | .309" | 10 |
1832/3 | SJTO | 16/3 | 26/30 | .030" | .030" | .327" | 10 |
1832/4 | SJTO | 16/4 | 26/30 | .030" | .030" | .359" | 8 |
1833/3 | STO | 18/3 | 16/30 | .030" | .060" | .361" | 7 |
1833/4 | STO | 18/4 | 16/30 | .030" | .060" | .390" | 6 |
1834 | STO | 16/2 | 26/30 | .030" | .060" | .369" | 10 |
1834/3 | STO | 16/3 | 26/30 | .030" | .060" | .387" | 10 |
1834/4 | STO | 16/4 | 26/30 | .030" | .060" | .419" | 8 |
1835/3 | STO | 14/3 | 41/30 | .045" | .080" | .526" | 15 |
1835/4 | STO | 14/4 | 41/30 | .045" | .080" | .569" | 12 |
1836/3 | STO | 12/3 | 65/30 | .045" | .095" | .601" | 20 |
1836/4 | STO | 12/4 | 65/30 | .045" | .095" | .650" | 16 |
1837/3 | STO | 10/3 | 103/30 | .045" | .095" | .657" | 25 |
1837/4 | STO | 10/4 | 103/30 | .045" | .095" | .713" | 20 |
Water resistant plastic versions used for outdoor applications
to withstand moisture/water
penetration for short periods are available to order.
*Yellow jacket is available to order.

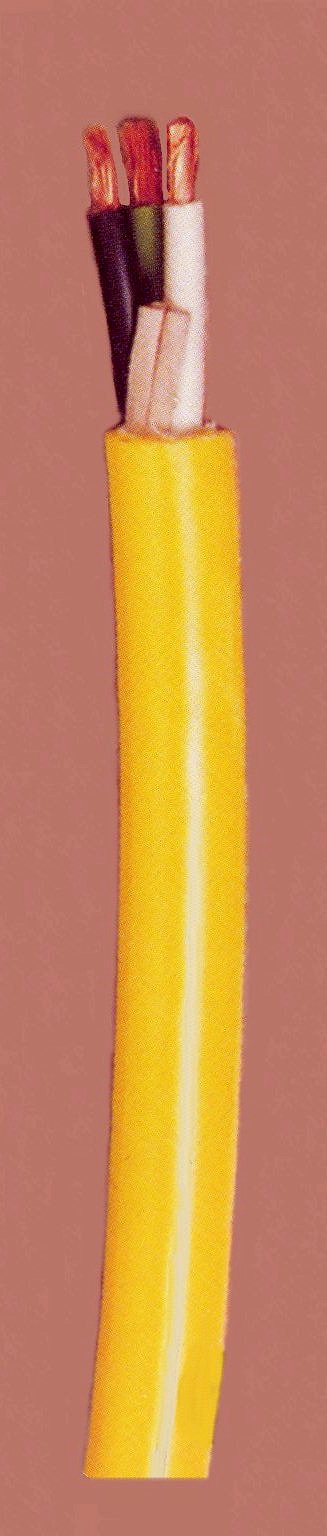

CPE WEATHER RESISTANT CORDAGE
DESCRIPTION: Each conductor
is stranded bare copper, EPDM insulation, non-wicking fillers where
necessary, cotton serve, Yellow* CPE jacket overall. UL &
CSA recognized. Suitable for most out-
door/in-door applications. Cable is resistant to many acids,
oils, and is water, weather, sunlight
(UV), ozone, abrasion, fungus, alkali, acid, tear and cut thru resistant.
Jacket wont melt on contact
with a hot surface, and has a flame retardant jacket. OSHA
approved. Suitable for extra hard uses.
COLOR CODE : 1-Black, 2-White, 3-Green, 4-Red. STD.
P-U: 250'.
Oper.Voltages: 600V--Type: SOOW 300V--Type:
SJOOW. Oper.Temp.: -50°C to +105°C.
USES: SOOW--For heavy duty industrial applications such as garage doors,
portable lights, battery
chargers,
sound equipment, welding leads, power extensions, marine, heavy
tools,
mining
applications, and portable equipment, for environments
containing oils, acids,
alkalis
& ozone.
SJOOW--For
medium duty applications, such as portable appliances & equipment,
small to
mid-size motors &
tools, if environment contains oils, acids, alkalis & ozone.
BRIM No. |
UL Type |
AWG/# Cond. |
Strand. | Nom. Wall |
Nom. Jack. |
Nom. O.D. |
AMPS /Cond. |
1890 | SJOOW | 18/2 | 41/34 | .030" | .030" | .280" | 10 |
1890/3 | SJOOW | 18/3 | 41/34 | .030" | .030" | .300" | 10 |
1890/4 | SJOOW | 18/4 | 41/34 | .030" | .030" | .325" | 7 |
1891 | SJOOW | 16/2 | 65/34 | .030" | .030" | .305" | 13 |
1891/3 | SJOOW | 16/3 | 65/34 | .030" | .030" | .325" | 13 |
1891/4 | SJOOW | 16/4 | 65/34 | .030" | .030" | .350" | 10 |
1892 | SJOOW | 14/2 | 41/30 | .030" | .030" | .335" | 18 |
1892/3 | SJOOW | 14/3 | 41/30 | .030" | .030" | .360" | 18 |
1892/4 | SJOOW | 14/4 | 41/30 | .030" | .030" | .390" | 15 |
1895/3 | SOOW | 18/3 | 41/34 | .030" | .060" | .360" | 10 |
1895/4 | SOOW | 18/4 | 41/34 | .030" | .060" | .385" | 7 |
1896 | SOOW | 16/2 | 65/34 | .030" | .060" | .365" | 13 |
1896/3 | SOOW | 16/3 | 65/34 | .030" | .060" | .385" | 13 |
1896/4 | SOOW | 16/4 | 65/34 | .030" | .060" | .415" | 10 |
1897 | SOOW | 14/2 | 41/30 | .045" | .080" | .500" | 18 |
1897/3 | SOOW | 14/3 | 41/30 | .045" | .080" | .525" | 18 |
1897/4 | SOOW | 14/4 | 41/30 | .045" | .080" | .567" | 15 |
1898 | SOOW | 12/2 | 65/30 | .045" | .095" | .574" | 25 |
1898/3 | SOOW | 12/3 | 65/30 | .045" | .095" | .600" | 25 |
1898/4 | SOOW | 12/4 | 65/30 | .045" | .095" | .650" | 20 |
1899 | SOOW | 10/2 | 103/30 | .045" | .095" | .623" | 30 |
1899/3 | SOOW | 10/3 | 103/30 | .045" | .095" | .655" | 30 |
1899/4 | SOOW | 10/4 | 103/30 | .045" | .095" | .710" | 25 |
*Black jacketed constructions are avaliable to order.
OTHER CONSTRUCTIONS AVAILABLE TO ORDER.
