ADHESIVE BACKED FASTENING DEVICES


BRIM QUIK KLIPä ADHESIVE BACKED FASTENING DEVICES
OPER. TEMP. RANGE: -10°F to +175°F.

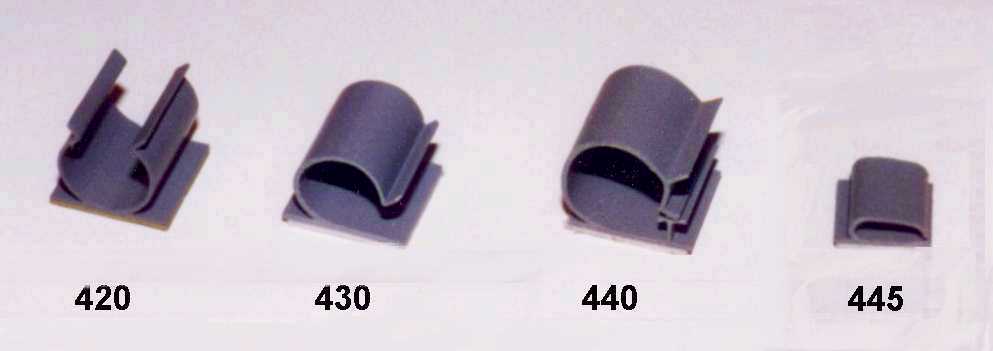

QUIK KLIPSä are made from a strong yet resilient gray PVC material.  They are elastic enough to accept
bundles of wire, cable, tubing, pipe, etc., yet they are strong, & will hold these types of loads firmly and
securely in position.  They are easy to mount.  All that is needed is a clean, dry, smooth surface.  Just
peel off the protective backing and press in place.   Allow a few seconds for the adhesive backing to set.
No nails, screws, staples, rivets, etc. are needed.   Apply to a clean, dry and smooth surface, in ambiant
temperatures.





Brim
No.
Diam.
   D
Width
   W
   STD.
   PKG.
Brim
No.
   Diam.
      D
Width
   W
   STD.
   PKG.

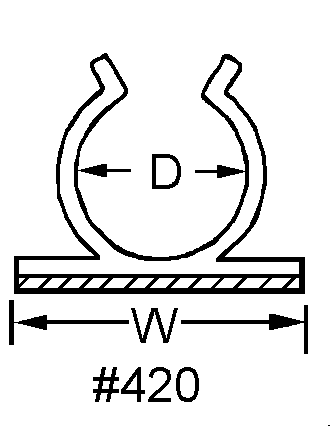

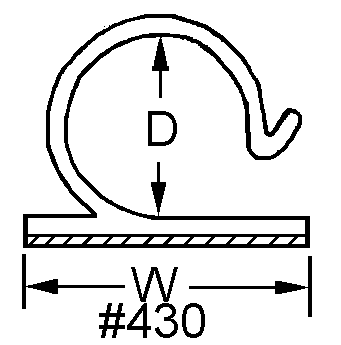

420-1/8   1/8"    3/4"  100,1000 430-5/16     5/16"   3/4" 100,1000
420-1/4   1/4"    3/4"  100,1000 430-3/8     3/8"   3/4" 100,1000
420-3/8   3/8"   3/4"  100,1000 430-1/2     1/2"    1"  100,1000
420-1/2   1/2"     1"  100,1000 430-3/4     3/4"    1" 100,1000

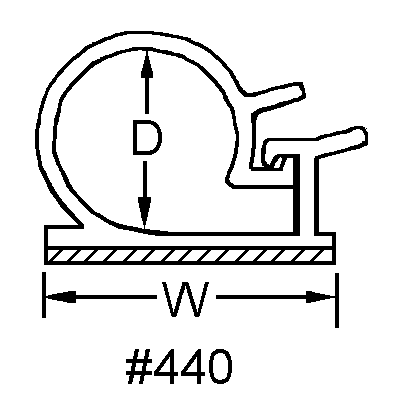

420-9/16  9/16"    1"  100,1000 440-1/4     1/4"   3/4" 100,1000
420-3/4   3/4"     1"  100,1000 440-1/2     1/2"    1" 100,1000
430-1/8   1/8"    3/4"  100,1000 440-3/4     3/4"    1"  100,1000

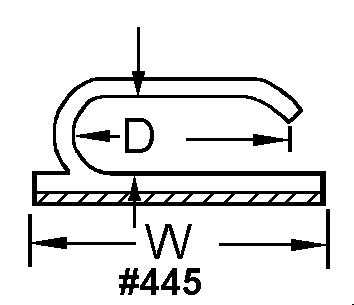

430-3/16  3/16"   3/4"  100,1000 445-5/8+ 5/8"x1/4"   3/4" 100,1000
430-1/4    1/4"    3/4"  100,1000

+ Made for 3 Cond. SPT type cables.


BRIM RIBBON CABLE ADHESIVE BACKED FASTENING DEVICES
STAK'M QUIK KLIPä  OPER. TEMP. RANGE: -10°F to +175°F.


Designed expressly for holding flat or round conductor ribbon cables firmly in place.   Put cable in
desired position-straight, at right angles, even stacked one on top of the other. STAK'M QUIK KLIPSä
hold ribbon cables pemantly in position. Made of high dielectic strength, self-extinguishing.   Apply to
a clean, dry & smooth surface, in ambiant temperatures.   Color:Black.  Material: PVC.



Brim
No.
   A   B   C    D    STD.
   PKG.
450-1/2 1 1/2" 1/2" 5/32" 3/32" 100,1000
450-1     2"    1"  5/32" 3/32" 100,1000
450-2    3"   2"  5/32" 3/32" 100,1000


BRIM RIBBON CABLE ADHESIVE BACKED FASTENING DEVICES
GRAB'M QUIK KLIPä  OPER. TEMP. RANGE: -10°F to +175°F.


Strong & elastic, the GRAB'M QUIK KLIPä is designed to secure round or flat conductor
types of ribbon cables from the side.  Their serrated edges hold firmly and prevent slippage.
Although they can hold permantly, they are suitable where sporatic or periodic removal of
cable is required.  They can also be used to hold panels, signs, or most any flat surface.
Apply to a clean, dry and smooth surface, in ambiant temperatures.
Color: Gray.  Material: PVC.



Brim
No.
 D*  W     C    STD.
   PKG.
436-1/2 1/4" 1/2" .445" 100,1000
436-1  1/4"   1"  .885" 100,1000

*Maximum recommended thickness of item to be held.



BRIM ELECTRONICS, INC. 120 HOME PLACE    LODI, NJ 07644

TEL: 201-796-2886     FAX: 973-778-2792     E-MAIL: info@brimelectronics.com
