BRIMFLEXä SHRINKABLE IRRADIATED
            POLYOLEFIN TUBINGS:
 MIL-I-23053/5 (2:1) & MIL-I-23053/4 (4:1)

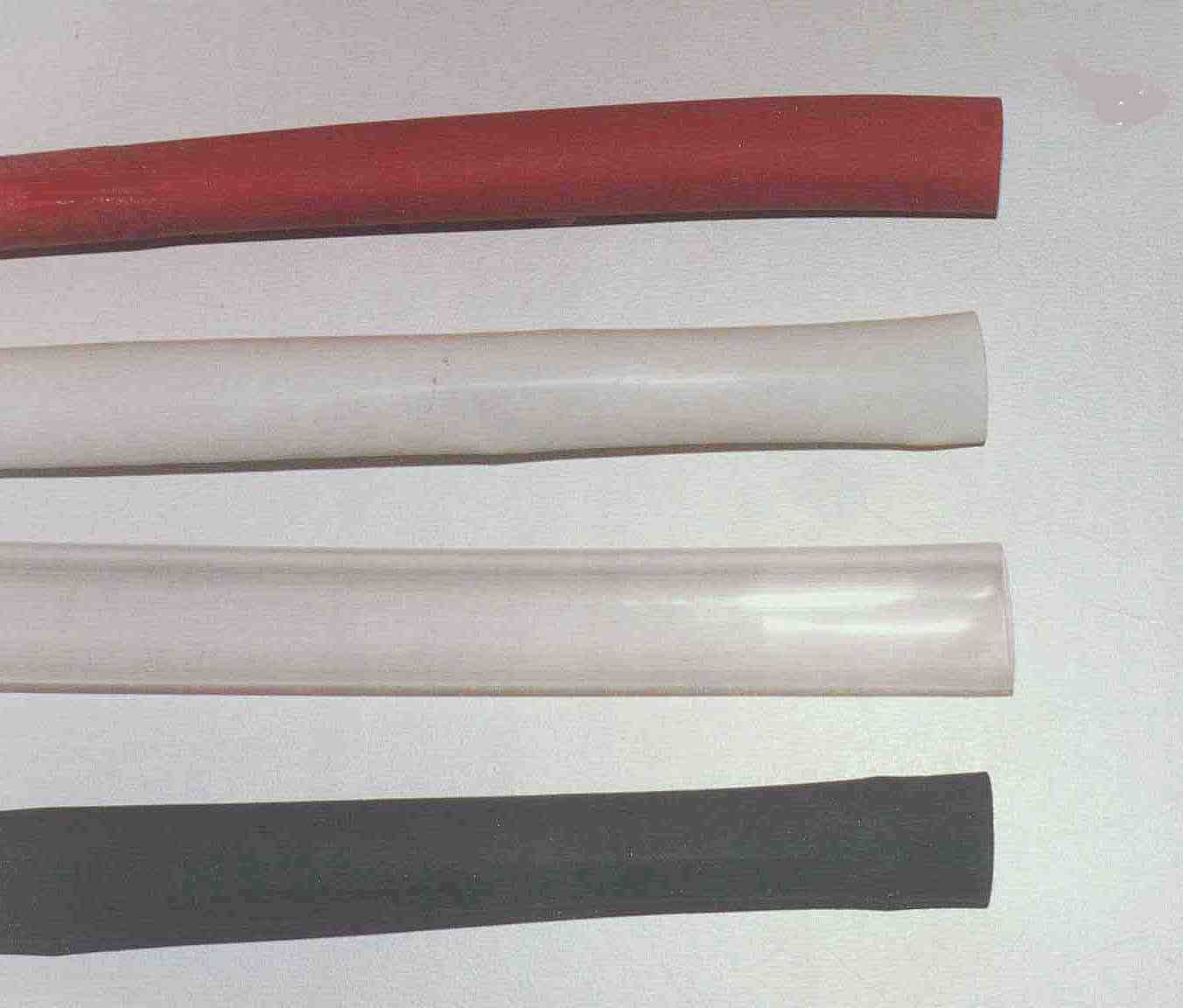

           SHRINKABLE IRRADIATED POLYOLEFIN TUBING
                      -- ALL PURPOSE -- MIL-I-23053/5A



SH135 is flexible yet it provides greater electrical, chemical, and abrasion resistance and greater
mechanical strength than that of shrinkable PVC tubing.  It not only insulates, it can also encapsulate
giving a watertight fit.  Won't crack or peel.  It's non-corrosive, has excellent resistance to soldering
irons, oils, solvents, acids, alkalis, fuels, hydraulic  fluids, and fungus.   Shrink Ratio--2:1 (50%).
Shrinks when exposed to 250°F.  Longitudinal shrinkage: 5%.   Dielectric Strength: 1300V/MIL.  Colored
tubing is self-extinguishing; clear tubing is slow burning.  Uses: Strain relief, jacketing material,
component insulation. OPER. TEMP.: -55°C to +135°C. Meets MIL-I-23053/5A, Class 1,2. MIL-I-7444B,
AMS 3636B,AMS 3637A,ASTM D876, ASTM D150, ASTM D257,ASTM D2671, ASTM D792.

Brimflexä
No.
Min. Exp.
    I.D.
Rec. I.D.
   Max.
Dimen.*
  Wall
± Wall
 Toler.
  AWG**  Rec.
M.M.
      Std. P-U
SH135-3/64"      .046"    .023"   .016"  .003"        22   0.59 100',500',1000'
SH135-1/16"      .063"    .031"   .016"  .003"     22-20   0.80 100',500',1000'
SH135-3/32"      .093"    .046"   .020"  .003"     18-16   1.19 100',500',1000'
SH135-1/8"      .125"    .063"   .020"  .003"       14   1.59 100',500',1000'
SH135-3/16"      .187"    .093"   .020"  .003"     12-10   2.39 100',500',1000'
SH135-1/4"      .250"    .125"   .025"  .003"         8         3.18   100',250',500'
SH135-3/8"      .375"    .187"   .025"  .003"         5   4.77     50',100',200'
SH135-1/2"      .500"    .250"   .025"  .003"         2   6.35     50',100',200'
SH135-3/4"      .750"    .375"   .030"  .005"        00   9.52      25', 50',100'
SH135-1"    1.000"    .500"   .035"  .006"      0000 12.70      25', 50',100'
SH135-1 1/2"    1.500"    .750"   .040"  .006"  450MCM 19.05      25', 50',100'
SH135-2"    2.000''   1.000"   .045"  .007"  750MCM 25.40      25', 50',100'
SH135-3"    3.000"  1.500"   .050"  .008" 1750MCM 38.10      25', 50',100'
SH135-4"    4.000"  2.000''   .055"  .009" 2750MCM 50.80      25', 50',100'

STD. COLORS: Black, Clear, Red, White.   Other colors are available to order.
*If full recovery allowed. **O.D. of closest equivalent wire.
SEMI-RIGID IRRADIATED POLYOLEFIN SHRINKABLE TUBING IS AVAILABLE TO ORDER.
CUT & PRINTED WIRE MARKERS ARE AVAILABLE TO ORDER.         RoHS compliant.


          4:1 SHRINKABLE IRRADIATED POLYOLEFIN TUBING        (NEW)
                      -- DUAL-WALLED -- MIL-I-23053/4



SH134 is very flexible yet it provides greater electrical, chemical, and abrasion resistance & greater
mechanical strength than that of shrinkable PVC tubing, plus an inner wall of meltable liner.  With it's
meltable inner/adhesive liner it not only insulates, it can also encapsulate giving a watertight fit.
Won't crack or peel.  It's non-corrosive, has excellent resistance to soldering irons, oils, solvents, acids,
alkalis, fuels, hydraulic  fluids, and fungus, and it's flame retardant.   Shrink Ratio--4:1 (75%).  Shrinkage
begins when exposed to 120°C.  Longitudinal shrinkage: 10%.   Dielectric Strength: 2500V for 1 Min.
Uses: Strain reliefs, jacketing material, component insulation, seal and protect wire splices, breakouts
or connectors-to-cable terminations. OPER. TEMP.: -55°C to +135°C.
Meets MIL-I-23053/4, Class 3, UL VW-1, CSA OFT (jacket only), ASTM D638.

Brimflexä
No.
Min. Exp.
    I.D.
Rec. I.D.
   Max.
Rec. I.D.
   M.M.
Thick.
 Wall*
Thick.
Wall**
 Std.
 P-U
SH134-3/16"     .158"    .039"      1.0  .035"   .020" 100'
SH134-5/16"     .315"    .079"      2.0  .035"   .020" 100'
SH134-1/2"     .472"    .118"      3.0  .051"   .024" 100'
SH134-3/4"     .630"    .157"      4.0  .063"   .030" 100'
SH134-1"     .945"    .236"      5.0  .083"   .031" 100'
SH134-1 1/4"   1.260"    .315"      6.0  .091"   .041" 100'

STD. COLOR: Black     STD. P-U: 4ft. lengths.
*Total wall thickness including liner, if full recovery allowed.
**Total wall thickness of liner only, if full recovery allowed.
++O.D. of closest equivalent wire.        RoHS compliant.
