BRIM
TEST LEADS
BRIM
TEST LEADS
BRIM
RETRACTILE TEST LEADS
MATERIAL: Test leads are assembled with kinkless
retractile TPE test lead wire, 12" retracted so
they can extend 6ft. appx., plus 12" straight ends, other end
as shown.
Std. Pkg.: 12 (6 ea. Red & Black leads).
| Brim No. | Description |

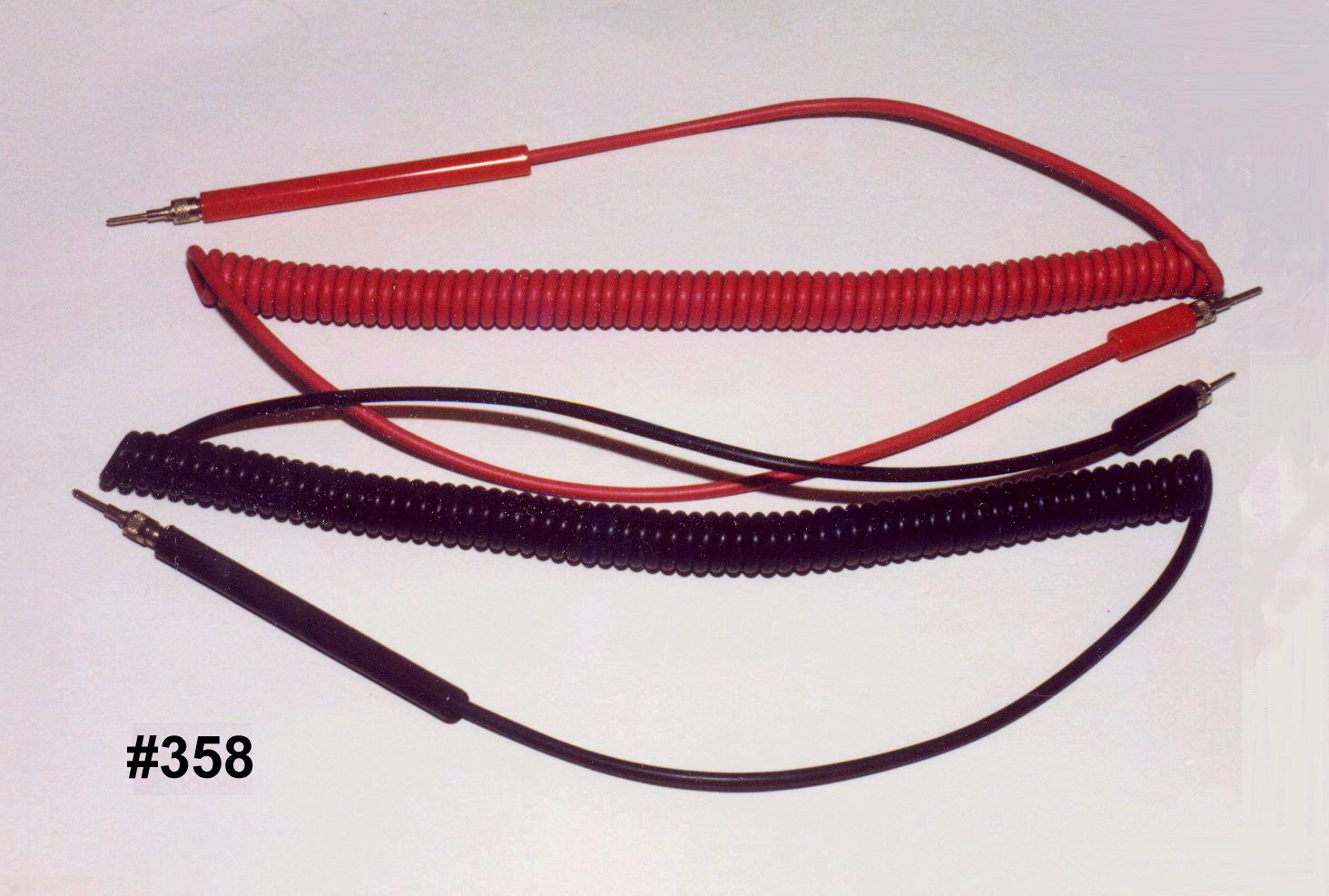

| 358 | #911 Solderless Test Prod, #909 Phone Tip, 114T Retractile Cord |

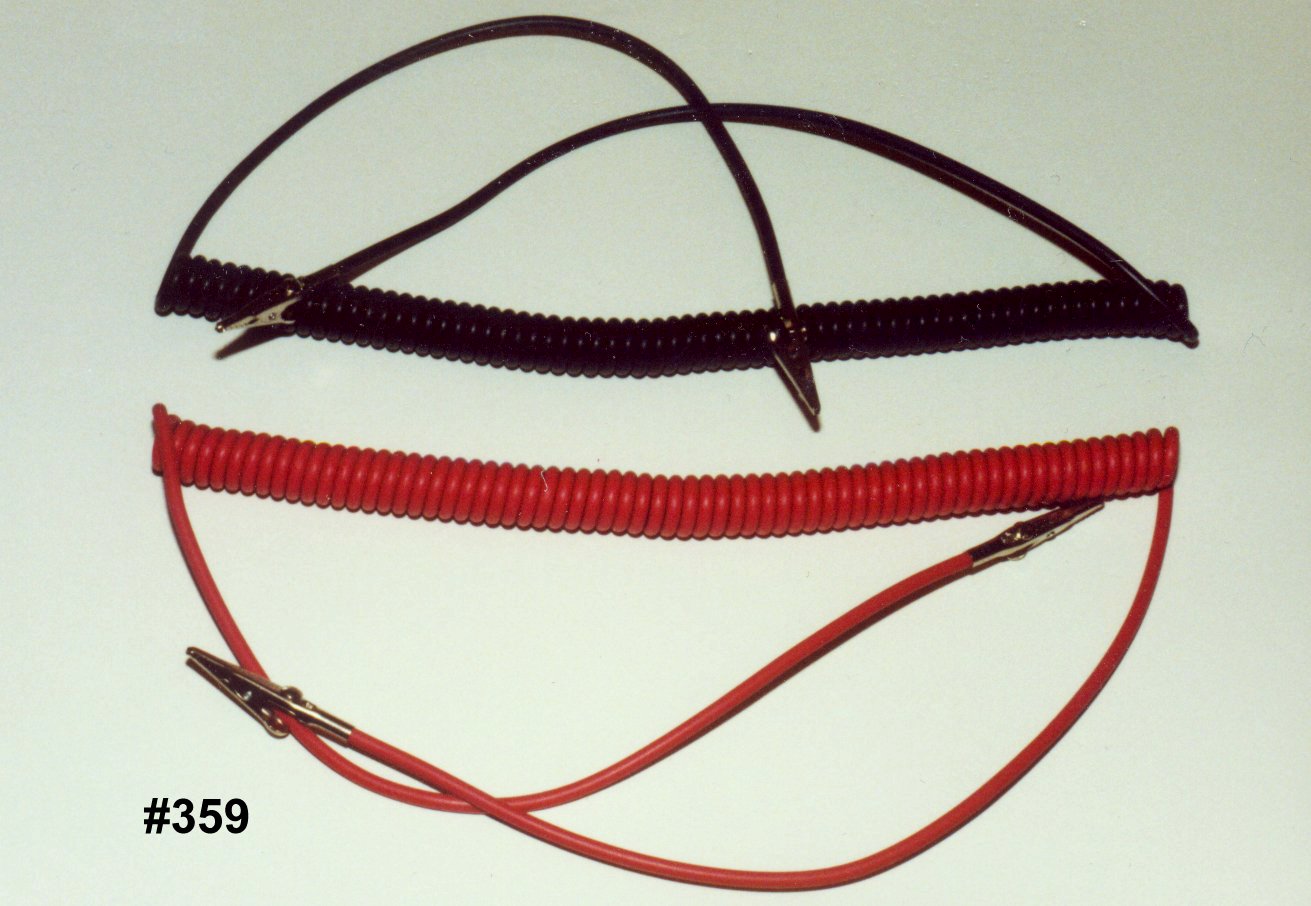

| 359 | #903S Uninsulated Alligator Clip ea. end, #114T Retractile Cord |

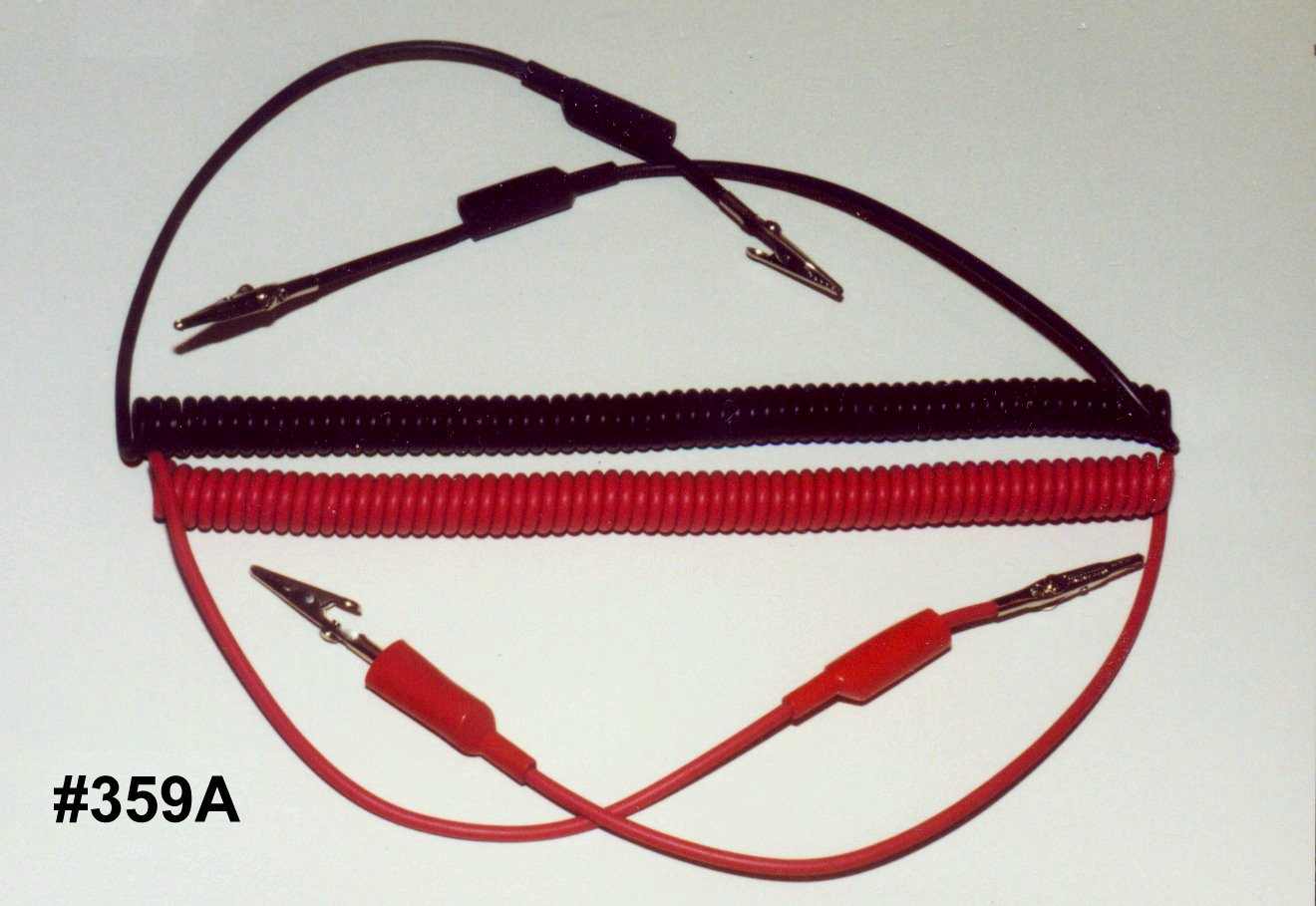

| 359A | #903S Alligator Clip + #901 Insul. boot ea.end, #114T Retractile Cord |

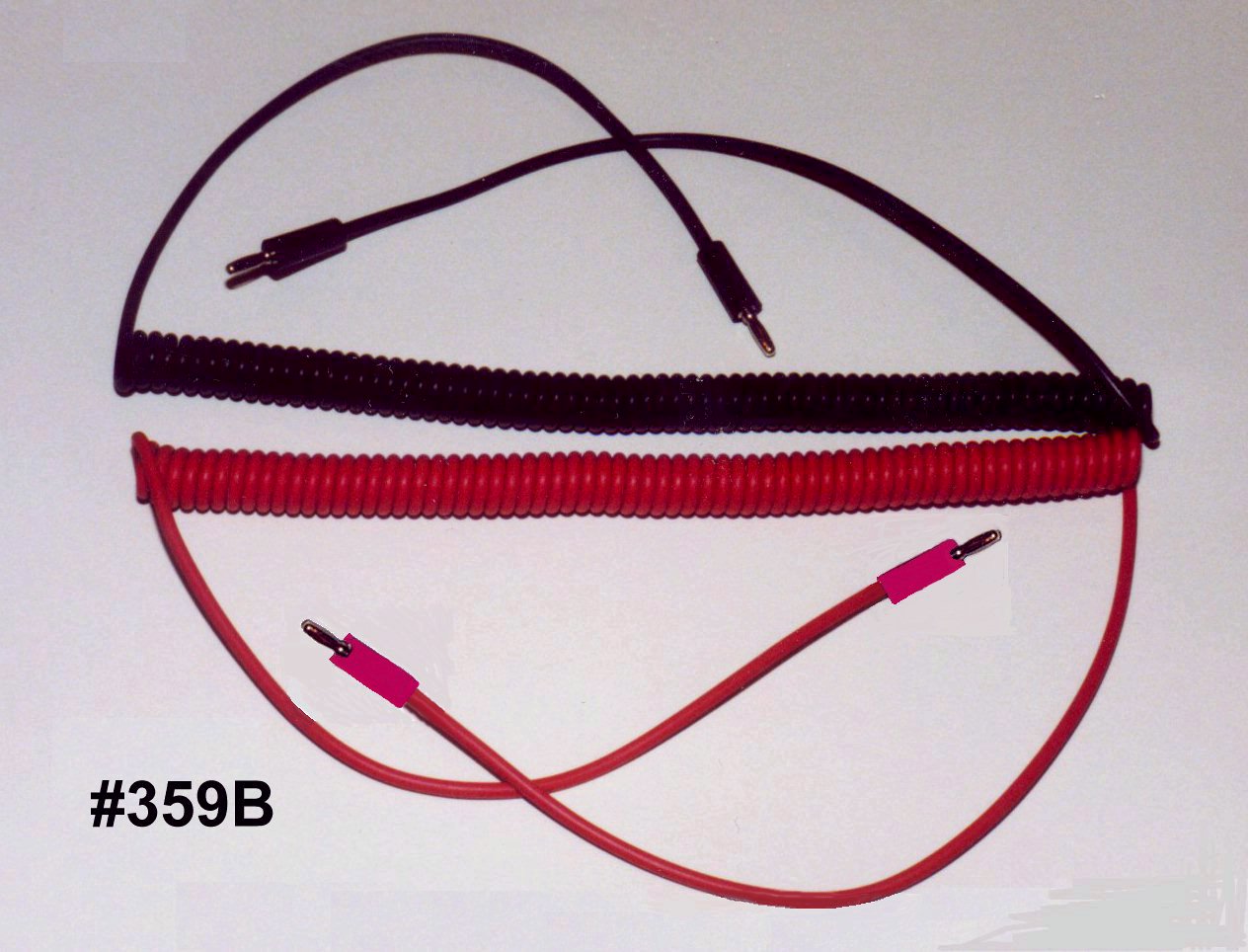

| 359B | #965 Banana plug ea. end, #114T Retractile Cord |
| BRIM No. Uninsul. |
BRIM No. Insulated |
Lead Length |
Description |

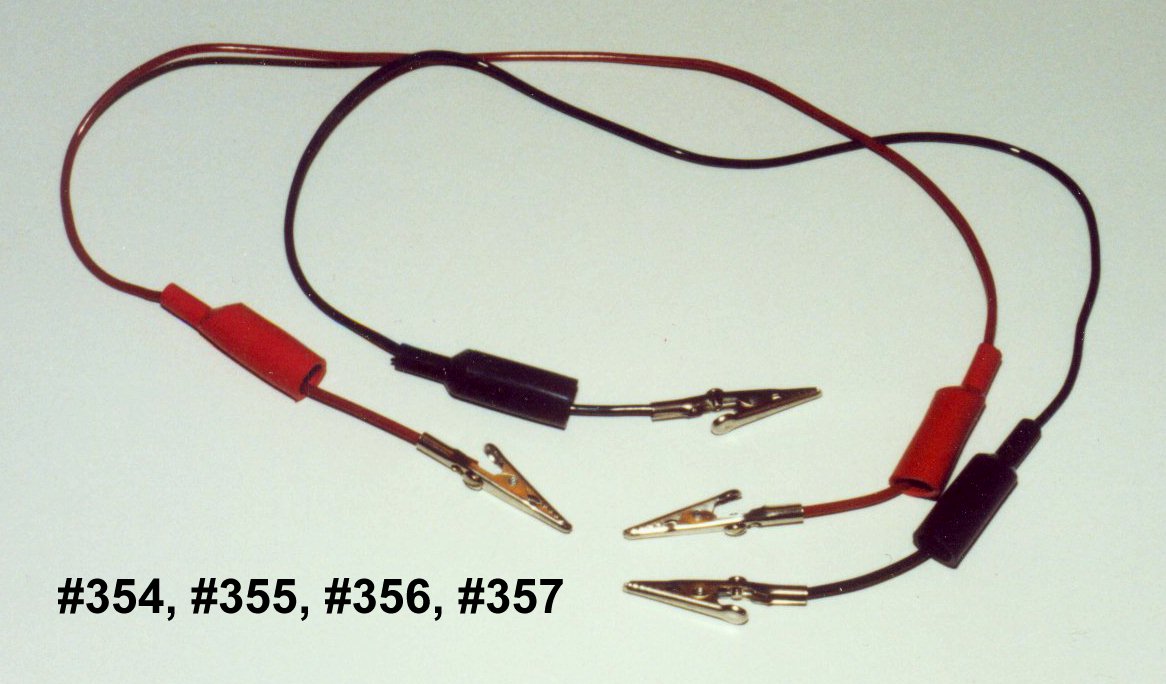

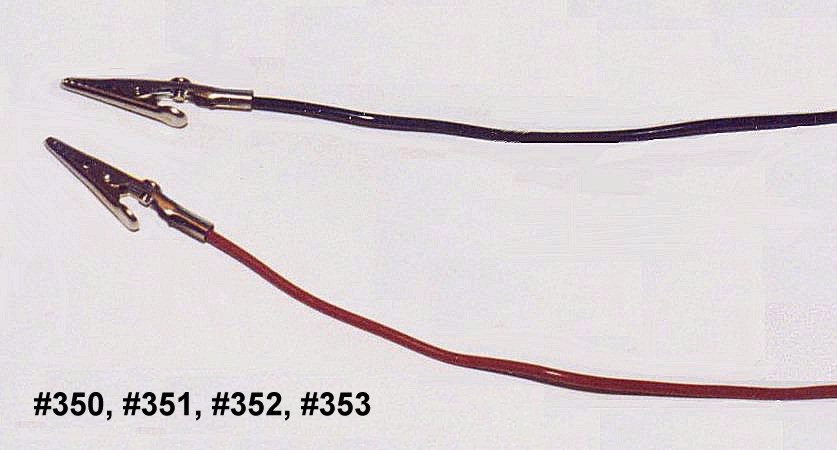

| 350 | 354 | 12" | 1870/18 wire, 903S Alligator Clip ea. end* |
| 351 | 355 | 24" | 1870/18 wire, 903S Alligator Clip ea. end* |
| 352 | 356 | 36" | 1870/18 wire, 903S Alligator Clip ea. end* |
| 353 | 357 | 48" | 1870/18 wire, 903S Alligator Clip ea. end* |
*With or without #901 insulating
boot. Other constructions are
available to order.
BRIM
TEST LEADS--NEEDLEPOINT & SOLDERLESS
MATERIAL: Black & Red 18 AWG plastic kinkless
test lead wire, 48" long, assembled with either a 4"
needlepoint test prod or 4" solderless test prod one end, other end
as shown.
Std. Pkg.: 12 (6 ea. Red & Black).
| BRIM No. |
Description |
Std. Pkg. |

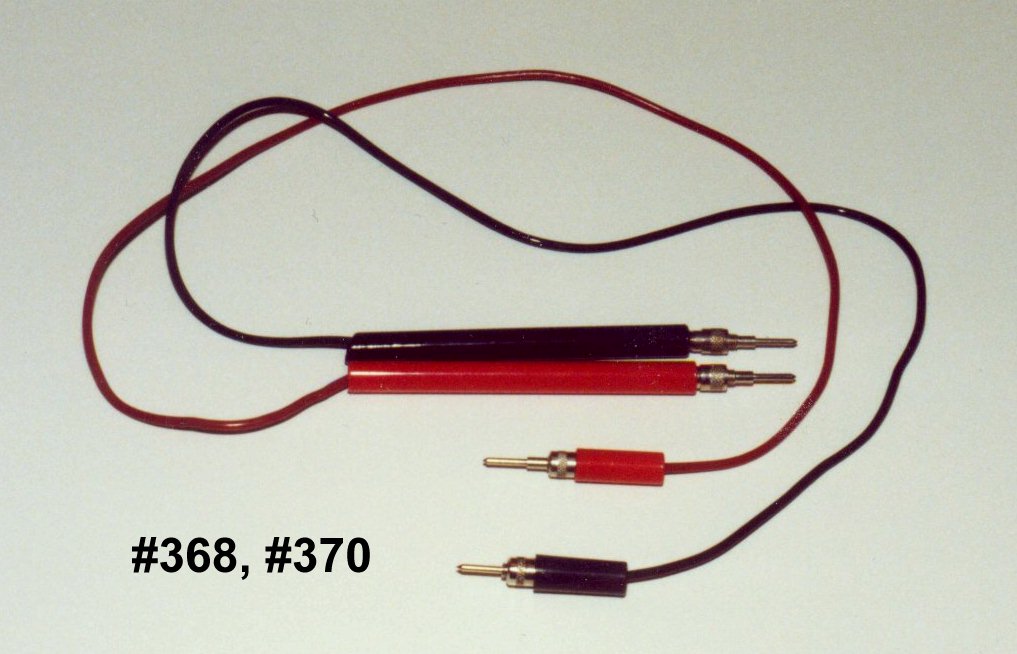

| 368 | #913*, #915 Phone Tip, 48" length #1870/18 | 12 |
| 370 | #911+, #915 Phone Tip, 48" length #1870/18 | 12 |

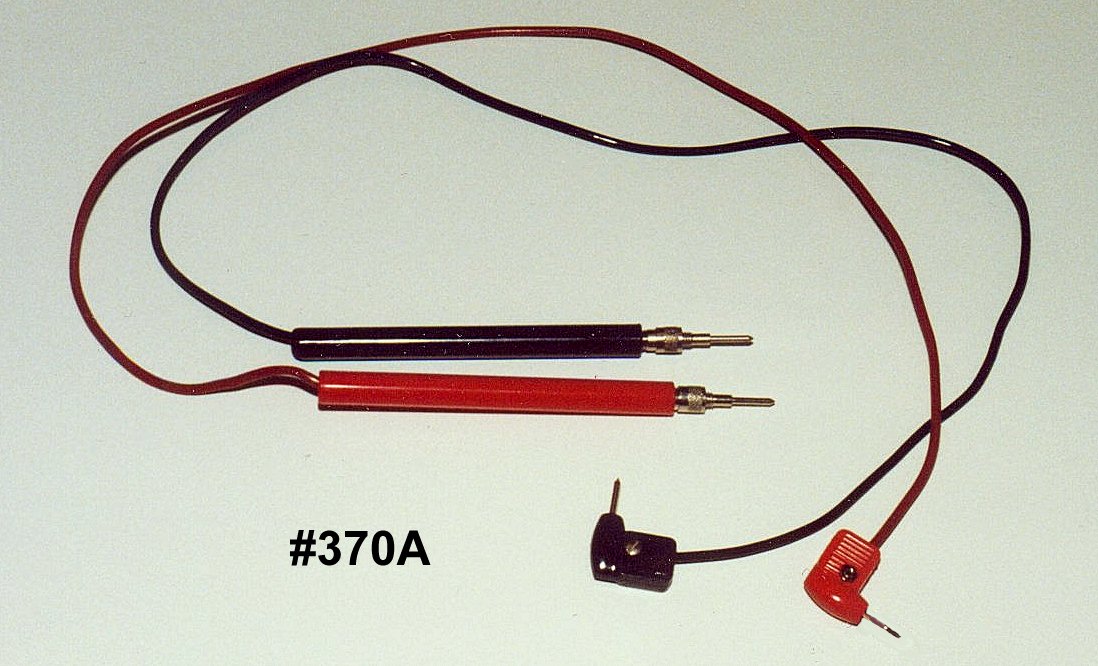

| 370A | #911+, #941 Meter Phone Tip, 48" length #1870/18 | 12 |

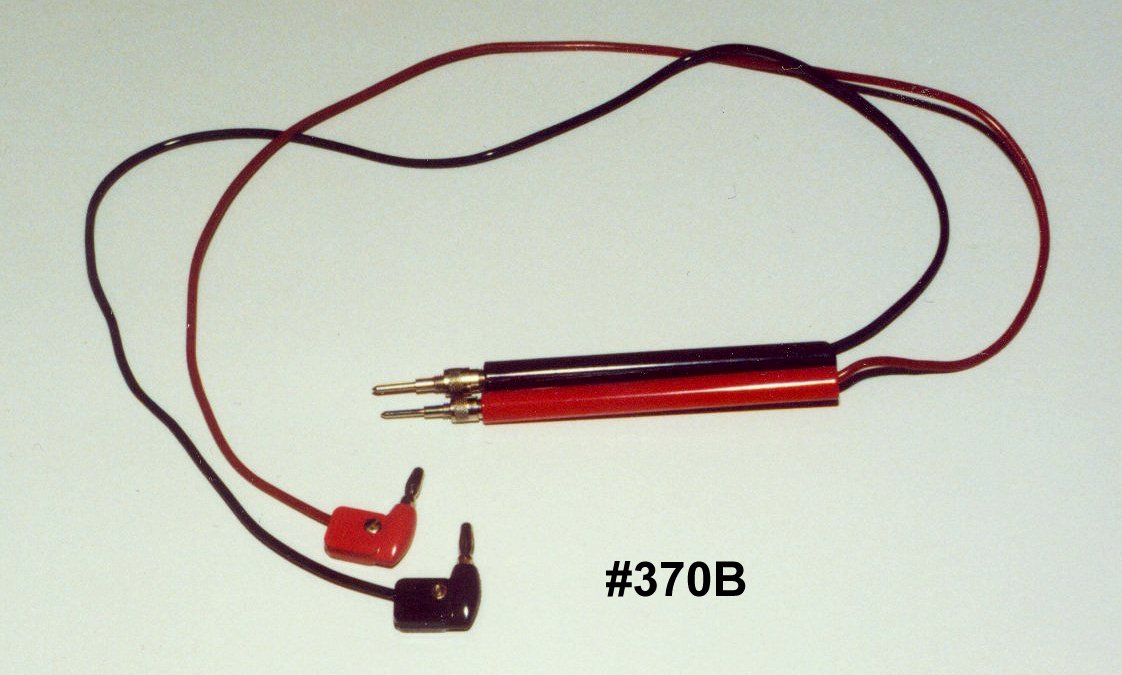

| 370B | #911+, #942 Meter Banana Plug, 48" length #1870/18 | 12 |

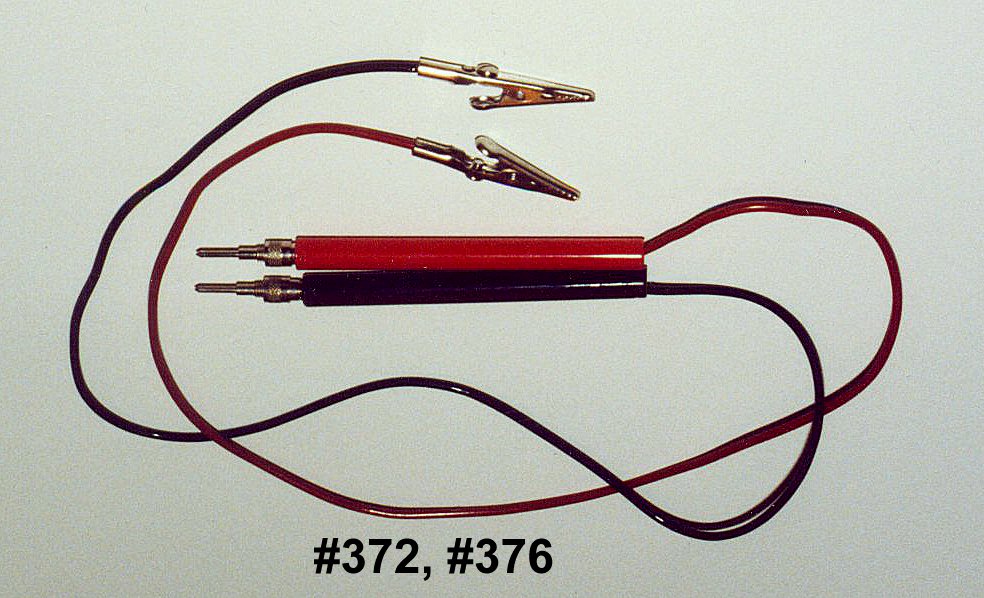

| 372 | #913*, #903S Allig.Clip, 48" length #1870/18 | 12 |

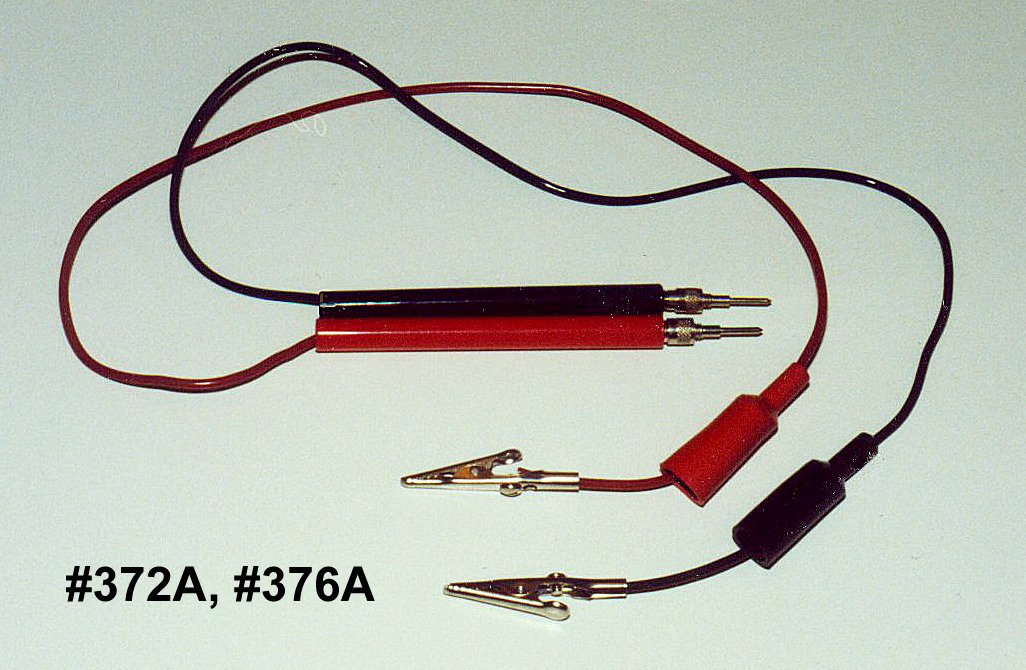

| 372A | #913*, #903S Allig.Clip, #901 Boot, 48" length #1870/18 | 12 |
| 376 | #911+, #903S Allig.Clip, 48" length #1870/18 | 12 |
| 376A | #911+, #903S Allig.Clip, #901 Boot, 48" length #1870/18 | 12 |
* = Needlepoint test prod, 4" handle. + = Solderless test prod, 4" handle.
