BRIM INTERCOM CABLES

  UL UNSHIELDED INTERCOM/COMPUTER/AUDIO CABLES-- UL 2464

DESCRIPTION:  Each conductor UL Type 1061, 24 AWG 7/32 T.C., UL VW-1.  Conductors are cabled,
then a .032" Gray 105°C UL VW-1 PVC jacket overall.  Color coded.  Cable meets UL Style 2464.
Suitable as an unshielded computer cable,  communication, intercom or audio cable.
OPER. VOLT.: 300V UL    OPER. TEMP.: -40°C to +105°C. See color code for multi-conductor cables.
RoHS compliant constructions are available to order.        STD. P-U: 500’, 1000’

BRIM No. No. Conds. AWG Strand. Nom. Wall Nom. Jack. Nom. O.D.
3014/12         12   24    7/32     .009"     .032"     .255"
3014/25         25   24    7/32     .009"     .032"     .315"

UNSHIELDED MULTI-CONDUCTOR STRANDED AUDIO CABLE

DESCRIPTION:  Each conductor 22 AWG 7/30 TC, .010" wall of PVC, twisted, cabled, Gray PVC
jacket  overall.   Suitable for PA systems, unshielded computer cable, indoor or outdoor intercom
systems,  signal systems,  nurse's call systems, annunciators, control circuit cables, multi-speaker
systems.  Color coded.   OPER. TEMP.: -40°C to +80°C  OPER. VOLT.: 200V.
See color code for multi-conductor cables.              STD. P-U: 100',1000'



BRIM
No.		   No.
Cond.		  AWG/
Strand.		 Nom.
Wall		 Nom.
Jack.		 Nom.
O.D.		 BRIM
No.		   No.
Cond.		  AWG/
Strand.		 Nom.
Wall		 Nom.
Jack.		 Nom.
O.D.
3012/2     2 22-7/30 .010" .020" .140" 3012/10    10 22-7/30 .010" .020" .235"
3012/3     3 22-7/30 .010" .020" .145" 3012/12    12 22-7/30 .010" .020" .255"
3012/4     4 22-7/30 .010" .020" .160" 3012/15    15 22-7/30 .010" .020" .280"
3012/5     5 22-7/30 .010" .020" .175" 3012/20    20 22-7/30 .010" .025" .320"
3012/6     6 22-7/30 .010" .020" .185" 3012/25    25 22-7/30 .010" .025" .350"
3012/7     7 22-7/30 .010" .020" .190" 3012/30    30 22-7/30 .010" .025" .375"
3012/8     8 22-7/30 .010" .020" .200" 3012/40    40 22-7/30 .010" .030" .435"
3012/9     9 22-7/30 .010" .020" .225" 3012/50    50 22-7/30 .010" .035" .500"
3012/60    60 22-7/30 .010" .040" .540"

RoHS compliant constructions are available to order.

HEAVY DUTY UNSHIELDED TWISTED-PAIRED INTERCOM CABLE

DESCRIPTION:  Each conductor 18 AWG 16/30 TC, .016" wall of PVC, twisted, cabled,
heavy duty  Gray PVC jacket overall.   Abrasion resistant.   Suitable for heavy duty
intercom systems, signal systems,  nurse's call systems, annunciators, control
circuit cables, multi-speaker systems.  Color coded.   OPER. TEMP.: -40°C to +80°C
OPER. VOLT.: 400V.    See color code for paired cables.                   STD. P-U: 500',1000'
RoHS compliant constructions are available to order.

BRIM
No.		   No.
Pairs		   No.
Cond.		 AWG Strand. Nom.
Wall		 Nom.
Jack.		 Nom.
O.D.
3018/3     3     6   18   16/30 .016" .035" .360"
3018/6     6    12   18   16/30 .016" .045" .545"
3018/9     9    18   18   16/30 .016" .055" .620"
3018/12   12    24   18   16/30  .016" .055" .655"
3018/15   15    30   18   16/30 .016" .060" .780"
3018/19   19    38   18   16/30 .016" .070" .840"
3018/27   27    54   18   16/30 .016" .070" .970"

OTHER CONSTRUCTIONS ARE AVAILABLE TO ORDER.


UNSHIELDED TWISTED-PAIRED STRANDED INTERCOM CABLE

DESCRIPTION:  Each conductor 22 AWG 7/30 TC, .010" wall of PVC, twisted, cabled, Gray PVC
jacket  overall.   Suitable for indoor or outdoor intercom systems,  signal systems,  nurse's call
systems, annunciators, control circuit cables, multi-speaker systems.  Color coded.
OPER. VOLT.: 200V. OPER. TEMP.: -40°C to +80°C   See color code for paired cables.
RoHS compliant constructions are available to order.     STD. P-U: 100',1000'



BRIM
No.		   No.
Pairs		   No.
Cond.		 AWG Strand. Nom.
Wall		 Nom.
Jack.		 Nom.
O.D.
3022     1     2   22    7/30 .010" .020" .140"
3022/2     2     4   22    7/30 .010" .020" .215"
3022/3     3     6   22    7/30 .010" .020" .228"
3022/4    4     8   22    7/30  .010" .020" .250"
3022/5    5    10   22    7/30 .010" .020" .280"
3022/6    6    12   22    7/30 .010" .020" .290"
3022/9    9    18   22    7/30 .010" .020" .340"
3022/11   11    22   22    7/30 .010" .025" .380"
3022/15   15    30   22    7/30 .010" .025" .420"
3022/19   19    38   22    7/30 .010" .030" .460"
3022/23   23    46   22    7/30 .010" .030" .510"
3022/27   27    54   22    7/30 .010" .035" .588"
3022/31   31    62   22    7/30 .010" .035" .635"
3022/41   41    82   22    7/30 .010" .040" .710"
3022/51   51   102   22    7/30 .010" .045" .800"

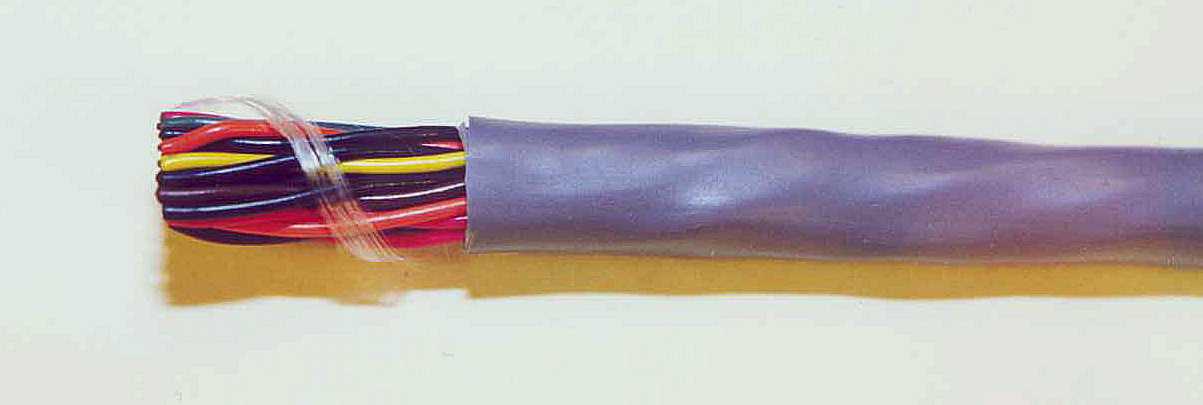

UNSHIELDED TWISTED-PAIRED SOLID INTERCOM CABLE

DESCRIPTION:  Each conductor 22 AWG solid TC, .010" wall of PVC, twisted, cabled, Gray PVC
jacket  overall.   Suitable for indoor or outdoor intercom systems,  signal systems,  nurse's
call systems, annunciators, control circuit cables, multi-speaker systems.   Color coded.
OPER. TEMP.: -40°C to +80°C  OPER. VOLT.: 200V.    See color code for paired cables.
RoHS compliant constructions are available to order.     STD. P-U: 100',1000'



BRIM
No.		   No.
Pairs		   No.
Cond.		 AWG Strand. Nom.
Wall		 Nom.
Jack.		  Nom.
 O.D.
3022S     1     2   22      1 .010" .020"  .130"
3022S/2     2     4   22      1 .010" .020"  .200"
3022S/3     3     6   22      1 .010" .020"  .210"
3022S/6    6    12   22      1  .010" .020"  .265"
3022S/9    9    18   22      1 .010" .020"  .310"
3022S/11   11    22   22      1 .010" .025"  .340"
3022S/13   13    26   22      1 .010" .025"  .360"
3022S/15   15    30   22      1 .010" .025"  .383"
3022S/19   19    38   22      1 .010" .030"  .446"
3022S/27   27    54   22      1 .010" .035"  .511"
3022S/31   31    62   22      1 .010" .035"  .555"
3022S/41   41    82   22      1 .010" .035"  .630"
3022S/51   51   102   22      1 .010" .045"  .735"
3022S/76   76   152   22      1 .010" .070"  .970"
3022S/101  101   202   22      1 .010" .080" 1.140"

OTHER COLOR CODED CONSTRUCTIONS ARE  AVAILABLE TO ORDER.
RoHS compliant constructions are available to order.

BRIM ELECTRONICS, INC. 120 HOME PLACE    LODI, NJ 07644
TEL: 201-796-2886     FAX: 973-778-2792     E-MAIL: info@brimelectronics.com
